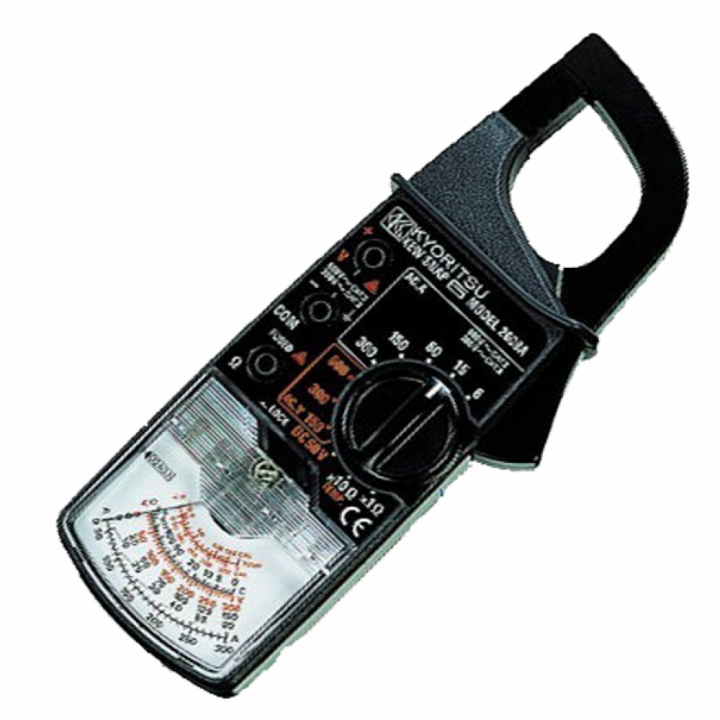

KYORITSU 2608A Clamp Meter (300A)

AC A 6/15/60/150/300A ±3% of FS

AC V 150/300/600V ±3% of FS

DC V 60V ±3% of FS

Ω 1/10kΩ (25/250Ω mid-scale) |±2% of scale length

Temperature -20ºC~+150ºC (with the use of Temperature Probe 7060)

|±5ºC (0ºC~+100ºC)

|±10ºC (other ranges)

Conductor Size Ø33mm max.

Frequency Response 50Hz/60Hz

Safety Standard IEC 61010-1 CAT.III 300V Pollution Degree 2

IEC 61010-2-031

IEC 61010-2-032

Withstand Voltage 3700V AC for 1 minute

Power Source R6P (AA) (1.5V) × 1

Dimensions 193(L) × 78(W) × 39(D)mm

Weight 275g approx.


Accessories

7066A (Test leads)

8923 (Fuse [0.5A/600V]) × 2

9097 (Carrying case)

R6P (AA) × 1

Instruction Manual

Optional 7060 (Temperature probe)

8008 (Multi-Tran)
