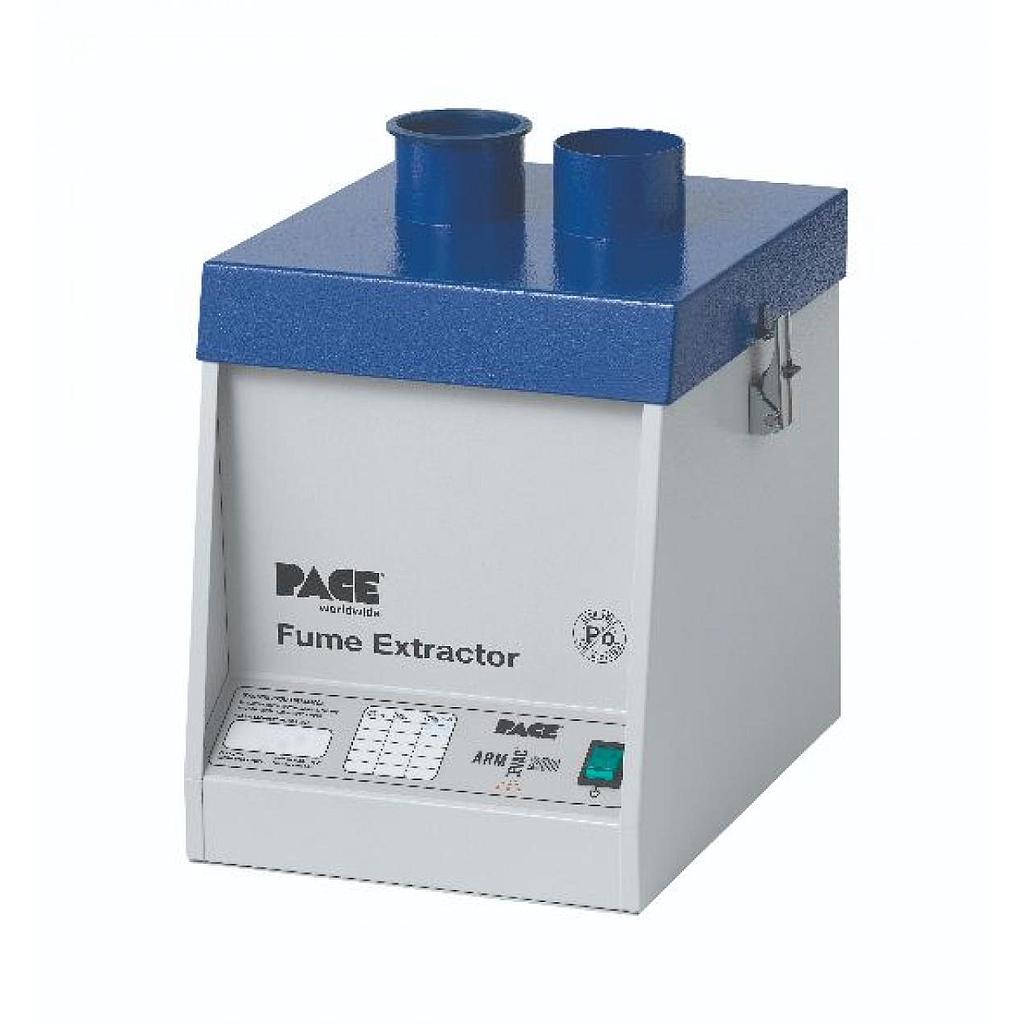

PACEWORLDWIDE ARM-EVAC 200 Fume Extraction Systems (230V)

The Arm-Evac 200 is designed to meet the needs of light-duty production as well as rework and repair operations.  Lightweight and compact, the Arm-Evac 200 installs in minutes. A wide variety of collection accessory options and filters are available. An optional silencer/mobile cart is also available.
- Power Requirements: 230VAC, 50Hz 1.38 Amps
- Size: 393mm H x 282mm W x 365mm D (15.4° H x 11.1° x 14.3° D)
- Sound Level: 58 dBA
# Inlets: Two 75mm (3") dia.
Flow rate
- General Purpose FilterSingle Inlet: 288 m3/h (170 cfm); Dual Inlet: 170 m3/h (100 cfm) per inlet
- Cleanroom FilterSingle Inlet: 255 m3/h (150 cfm); Dual Inlet: 135 m3/h (80 cfm) per inlet
#of Collection Accessories: Four 45mm (1.75°) or 50mm (2°) Two 75mm (3°)
- Maximum Duct Run5m (16°) per inlet
- System OptionsSilencer/Mobile Cart
- Standard Primary Filter: General Purpose Filter
- Filtration Options: General Purpose Filter, Cleanroom Filter, Adhesive Filter, Extended Life Filter, Economy Filter
