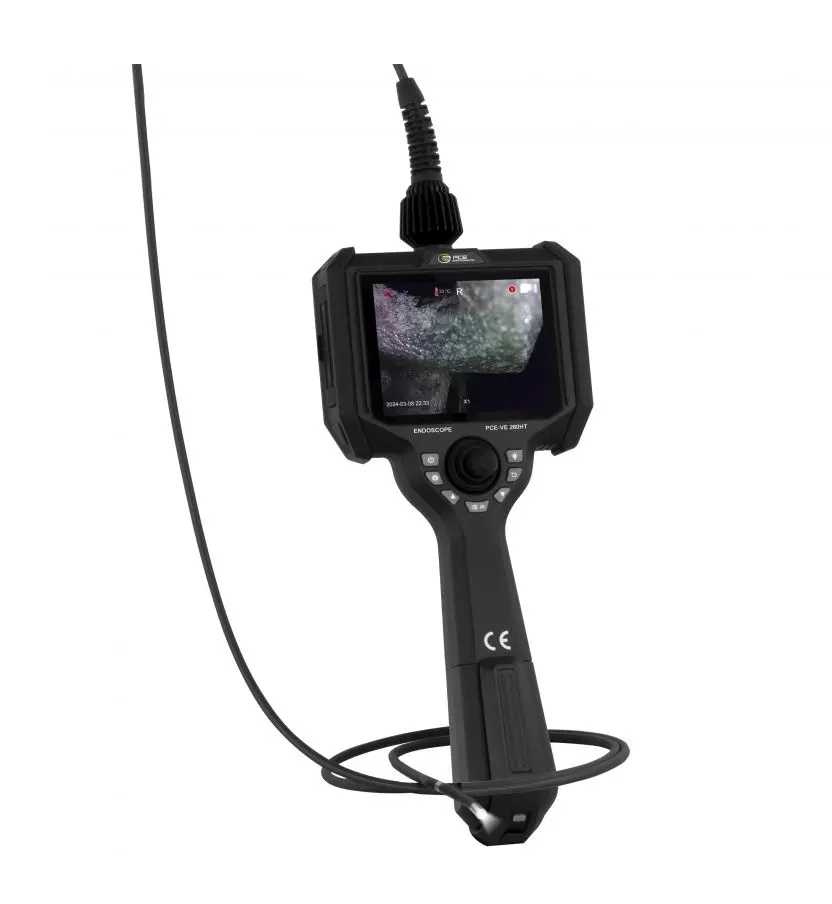

PCE VE 260HT Videoscope (2 m; 12~200 mm)

General technical data

Display type : LCD

Display size : 5 inch

Storage medium : Micro SD card

Storage capacity : 32 GB

Storage capacity (additional information) : max. 128 GB possible

Interface : HDMI, Micro-USB, AUX

Camera resolution : 1280 x 720

Camera orientation : frontal 0°

Operating time : 4 h

Length of camera probe : 2 m

Material camera probe : Wolfram braided

Movement of camera probe : 4-way

Camera probe protection class : IP67

Diameter of camera head : 6 mm

Field of view : 120 °

Field of view depth : 12 ... 200 mm

Bending angle : 220 °

Luminous intensity : 40000 lx

Fibre optic guide, rear LED

Cable type : flexible

Image / video format : JPEG, AVI, mp4

Pressure connection : Quick connection, max. permissible air pressure 4 bar

Menu language : German, English, Chinese, French, Spanish, Italian, Polish, Japanese, Russian, Ukrainian, Dutch, Korean

Protection class (device) : IP54

Power supply : 5 V DC

Plug type : Euro plug device

Weight : 1018 g

Dimensions (L x W x H) : 360 x 157 x 75 mm

Operating conditions : -10 ... 50 °C , 0 ... 90 % r.H

Storage conditions : -20 ... 60 °C , 0 ... 90 % r.H

Accumulator/battery : 1x 3.7 V , lithium-ion battery

Capacity : 3400 mAh

Delivery scope

1 x videoscope PCE-VE 260HT

1 x 32 GB micro SD card

1 x USB card reader

1 x mini tripod

1 x approx. 40 cm hose

1 x HDMI cable

1 x case

1 x USB power adapter 5 V, 3 A

1 x Micro-USB cable

1 x instruction manual
