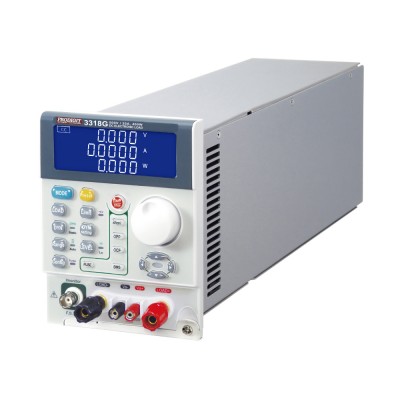

Prodigit 3318G DC Electronic Load (20A, 500V, 400W)

  • Manufacturer: PRODIGIT
    Model: 3318G
    Origin: Taiwan
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

Power 400W

Current 20A

Voltage 500V

Over Power Protection(OPP) 105%

Over Current Protection(OCP) 105%

Over Voltage Protection(OVP) 105%

Over Temp Protection(OTP) YES

Constant Current Mode

Range 0 ~ 2.04A/ 0 ~ 20.4A

Resolution 0.034mA/0.34mA

Accuracy ± 0.1% of ( setting + Range)

Constant Resistance Mode

Range 30Ω~ 1800KΩ/ 0.3Ω ~ 30Ω

Resolution 0.000555mS/0.05mΩ

Accuracy ± 0.2% of (Setting + Range)

Constant Voltage Mode

Range 0 ~ 60V/ 0 ~ 500V

Resolution 0.001V/0.01V

Accuracy ± 0.05% of (Setting + Range)

Constant Power Mode

Range 0 ~ 40.02W / 0 ~ 400.2W

Resolution 0.667mW/ 6.67mW

Accuracy ± 0.5% of (Setting + Range)

Constant Current + Constant Voltage Mode

Range 500V/ 20A

Resolution 0.001V/0.34mA

Accuracy ± 1.0% of (Setting + Range)
