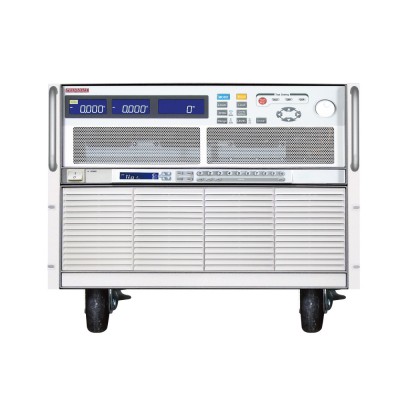

Prodigit 33541F High Power DC Electronic Load (3600W, 720A, 60V)

Power: 3600W

Current: 0~720A

Voltage: 0~60V

Min.Operation Voltage: 0.7V@720A

-CC mode

+Range: 0~72A/720A

+Resolution: 1.2mA/12mA

+Accuracy: ±0.1%

-CR mode

+Range: 0.00138~0.0833~5KΩ

+Resolution: 0.00138mΩ/0.2mS

+Accuracy:  ±0.2%

-CV mode

+Range: 6V/60V

+Resolution: 0.1mV/1mV

+Accuracy: ±0.05%

-CP mode

+Range: 360W/3600W

+Resolution: 6mW/60mW

+Accuracy: ±0.5%

- Optional interface : GPIB, RS232, USB, LAN
