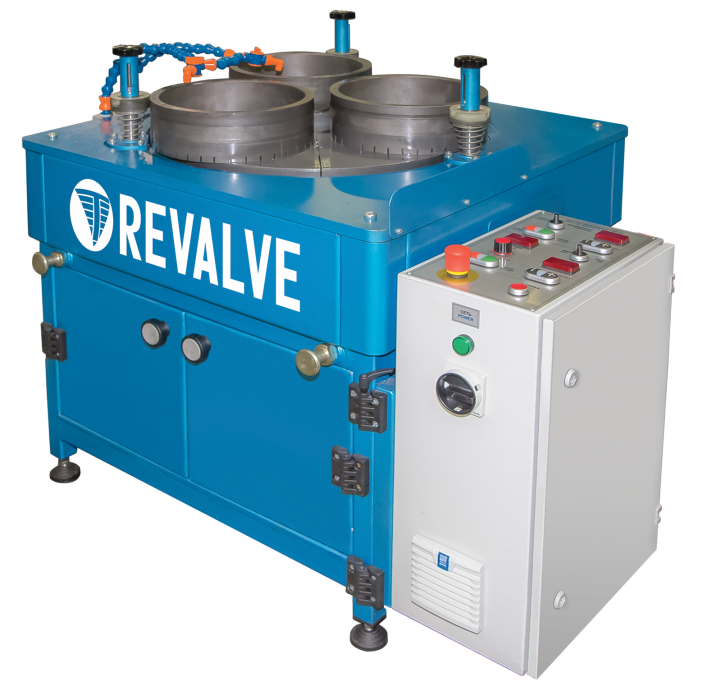

Revalve SP-600 Flat lapping (polishing) machines
Manufacturer: Revalve Model: SP-600 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Lapping-plate diameter
Ø 620 mm (24″). For gate valves wedges
DN 50…150 mm (2...6″)
Specification:
Valve range: 15...150* / 50...150** (½...6* / 2...6**) DN, mm
Lapping-plate diameter (″): 620 (24) mm
Number of cartridges: 3
Internal diameter of the cartridges(″): 266 (10) mm
Machined-surface roughness: 0,08...0,1 μm
Machined-surface nonflatness (accuracy): 0,6 mkm
Lapping-plate speed: 10...50 rpm
Power consumption: 4kW
Electric power supply: 400/50 (480/60*) V/Hz
Overall dimensions (LхWхH)(″): 1200х950х1000(47x37x39)mm
Weight: 630kg
* Upon customer request.
** Valve spools.
