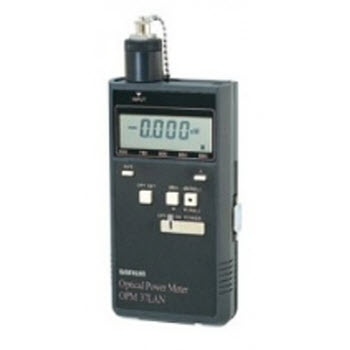

Sanwa OPM37LAN Optical power meter (1nW -20.00mW, ±5.0%)

- Measuring range: 1nW -20.00mW
-Accuracy : ±5.0%
-Resulation : ±0.01% , 0.01  dB
- Wavelength: 650,780,800,850,880 nm
-Optical Sensor : SI photodiode
-Display: 4 digit
-Automatic 8 ranges
- Sampling rate: Approx. 3.33  times/sec.
-Operating temperature : 18℃~25℃, 80%RH(Max)
-Pin: 006P or AC Adapter
- H164 x W85 x D35mm /300g
-Standard accessories included : Instruction manual, AC Adapter,Sensor optical,FC Conector
Details

 Manual

Features:
dBm and W measurement
Relative value
Offsetting, data averaging (20-data sequential averaging)
Direct reading wavelength (650, 780, 800, 850, 880nm)
RS-232C interface
Various connectors can be equipped by changing optical connector adapter.
2m long sensor extension cord

Option:
RS232C cable : KB-RS-OPM
SC-type optical connector adapter : OPA-F04
Simplex TOSLINK type optical connector adapter : OPA-F05
Duplex TOSLINK type optical connector adapter : OPA-F07
