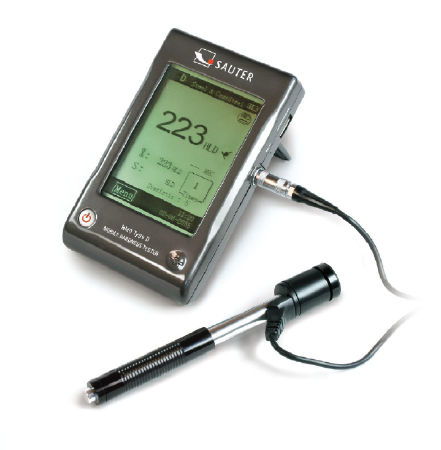

SAUTER HMO Mobile Leeb hardness tester

Innovative touchscreen
Automatic recognition of the impact (rebound) sensor connected
to the HMO.
Mobility: The SAUTER HMO. provides a professional and resilient
measurement solution wherever required, i.e. production, product
control etc.
All measurement directions possible (360°) thanks to an automati
compensation function
Data output to PC: USB output included
Wireless IR printer included for on-site printing of measurement
protocols (battery operated)
 Standard block and support ring for curved surfaces
(Radius > 10 mm)
Delivered in a hard carrying case
Internal memory up to 800 values
Mini statistics function: Displays the measurement value, the
average value, the difference between the maximum and minimum
values, date and time
Measurement value display: Rockwell (B & C), Vickers (HV),
Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
Automatic unit conversion: The measuring result is automatically
converted into all specified hardness units
Precision: 1 % 800 HLD (± 6 HLD)
Measuring range tensile strength: 375 - 2639 MPa  (steel)
Min. sample weight on a solid and stable support:
Sensor D + DC: 3 kg
Sensor G: 15 kg
Minimum sample thickness:
Sensor D + DC: 8 mm
Sensor G: 10 mm
Minimum sample radius (concave/convex): 50 mm
(with support ring: 10 mm)
Dimensions LxWxH 135x83x24 mm
Operation by rechargeable battery pack, operating time approx. 50 h,
mains adapter included, AUTO-OFF function to preserve the batteries,
charge indicator
Net weight approx. 228 g
