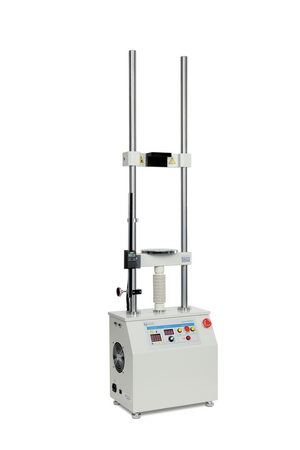

SAUTER TVM 5000N230NL-LB Motorised test stand - electronic, two columns (5 kN; 210mm)
Manufacturer: SAUTER Model: TVM 5000N230NL-LB - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Generated force [Max]: 5 kN
Traverse distance [Max]: 210 mm
Type of drive: Electric motor
Length measuring device: Length measuring device with display and data interface
Input voltage power supply / power [Max]: 220 V AC, 50 Hz
Limit switch: ✓
Repeat function: ✓
Speed display: ✓
Material housing: metal, lacquered
Dimensions completely mounted (W×D×H): 400×256×1535 mm
Transversal movement speed [Min]: 10 mm/min
Transversal movement speed [Max]: 230 mm/min
Measurement alignment: vertical
