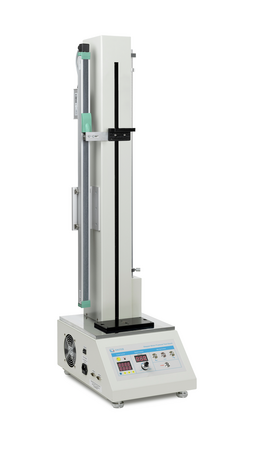

SAUTER TVO 2000N500S-LD Motorised test stand - electronic, one columns (2 kN; 700 mm)

Generated force [Max]: 2 kN

Traverse distance [Max]: 700 mm

Type of drive: Stepper motor

Length measuring device: Length measuring device with data interface

Input voltage power supply / power [Max]: 230 V AC, 50 Hz

Limit switch: ✓

Repeat function: ✓

Speed display: ✓

Dimensions completely mounted (W×D×H): 1185×465×300 mm

Transversal movement speed [Min]: 1 mm/min

Transversal movement speed [Max]: 500 mm/min

Measurement alignment: vertical

Details

Datasheet
