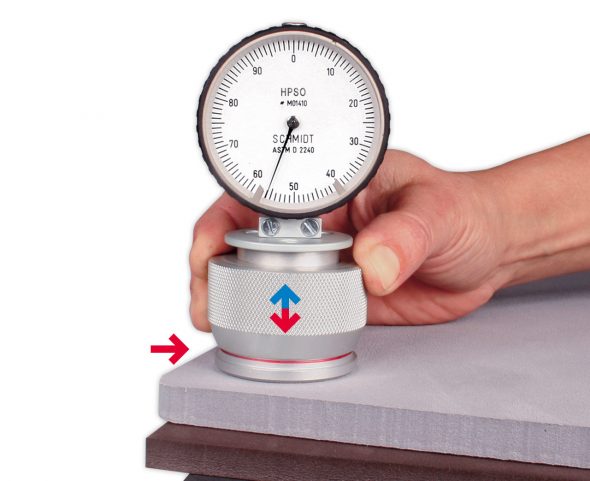

SCHMIDT HPSO Shore Durometer (20 – 80 Shore O)
Manufacturer: SCHMIDT Model: HPSO - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Indentor: U-grooved 3/32”
Depth of indentation: 0 – 2.5 mm
Typical applications: Soft elastomers, soft elastic materials, medium fast textiles
Accuracy: ± 1 hardness unit
Application range: 20 – 80 Shore O
Standard: ASTM D 2240
Measuring spring force: 0.55 – 8.065 N
Test pressure*: Approx. 12,5 N
Display range: 0 – 100 Shore O units
Scale diameter: 54 mm
Working face: 18 mm Ø
Base plate: 45 mm Ø
Weight, net (gross): Approx. 300 g (approx. 500 g)
Dimensions: 50 x 58 x 113 mm (LxWxH)
