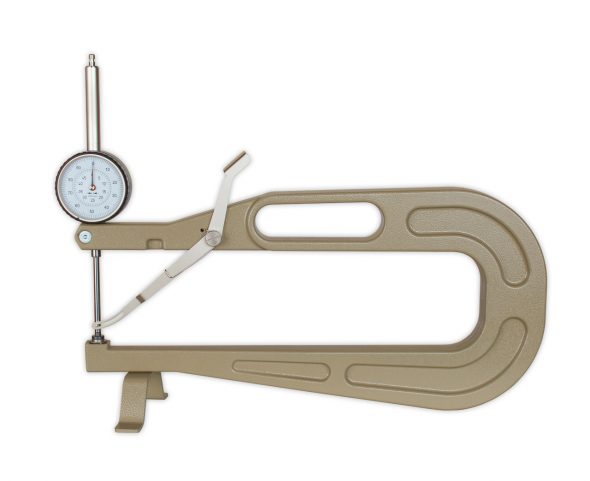

SCHMIDT J-300-50 Thickness Gauge (50 mm)

Resolution: 0.01 mm

Measuring range: 50 mm

Depth of jaw: 300 mm

Bezel diameter: 54 mm

Feeler shape: A/B/C/D/E

Measuring principle: Self closing

Weight, net (gross): Approx. 1450 g (1550 g)


Special Features

Thickness gauge J-300-50 features an easy to read analog display along with the high accuracy

The thickness gauge is available with 5 different feelers, which can be found below

Measuring by specified spring force

Opening by lifting device (lever) – self closing thickness gauge J-300-50

Swing out foot for on-table operation
