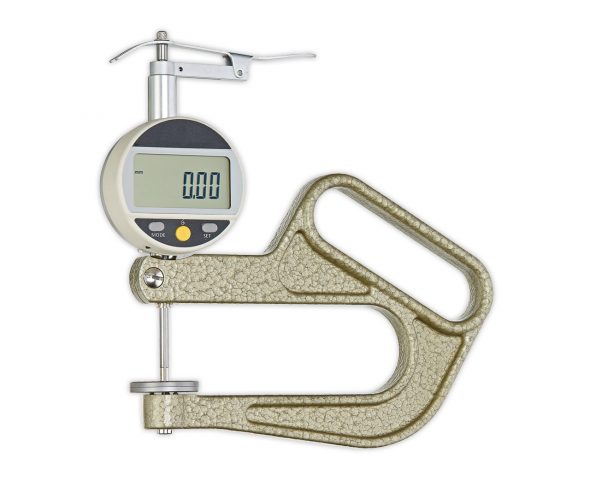

SCHMIDT JD-100 Thickness Gauge (0 – 12.5 mm / 0 – 0.5 Inch)
Manufacturer: SCHMIDT Model: JD-100 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Resolution: 0.01 mm / 0.001 Inch
Measuring range: 0 – 12.5 mm / 0 – 0.5 Inch
Depth of jaw: 100 mm
Measuring principle: Self closing
Feeler shape: A/B/C/D/E
Display: LCD 6 digit, 8.5 mm high
Measuring system: Capacitive (Sylvac)
Temperature range: 10 – 45 °C
Battery: 3 V Lithium, CR 2032
Data output: USB, RS-232, galvanic isolation
Weight, net (gross): Approx. 450 g (500 g)
Special Features
Thickness gauge JD-100 features an easy to read digital display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by spring force
Opening by lifting device (lever) – self closing thickness gauge JD-100
Output signals:
– USB
– RS-232
