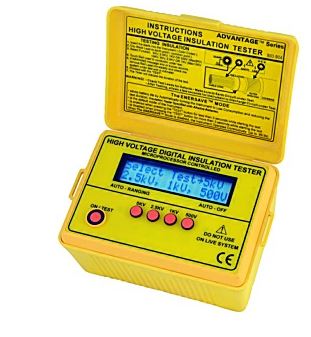

SEW 2803 IN Insulation Tester

Manufacturer: SEW
Model: 2803 IN
Origin: Taiwan
Contact
In stock: 3 Unit
- Request a Quotation
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636

Dong Nai: 0932.160.940

Specifications
Manufacturer Info

Test voltage (DC V): 0.5kV / 1kV/ 2.5kV/ 5kV
Measuring ranges: 0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ
Accuracy
0-50GΩ : ±3% rdg
50-250GΩ : ±5% rdg
Dimensions: 170(L) × 120(W) × 95(D)mm
Weight: 930g
Power source:1.5V(AA) × 8

Details

FEATURESa

FEATURES

● Microprocessor-controlled.
● Four insulation test voltages.
● Insulation resistance; auto ranging on all ranges.
● Bargraph indicates test voltage; rise and decay can be observed
during tests.
● Visual and audible warning if external voltage is present.
● EnerSave™ feature to extend battery life.
● 2 Lines × 16 characters large LCD.
● Low battery consumption.
● Low battery indicator.
● Overload protection.
● Auto-off.
● Show test time duration (up to 99.9s) for easy comparison.
● EEPROM calibration.
● Built-in carry case and test leads in separate pouch.

SPECIFICATIONS

Test voltage (DC V)	0.5kV / 1kV / 2.5kV / 5kV
Measuring ranges (Auto-Ranges)	0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ
Accuracy	0-50GΩ : ±3% rdg 50-250GΩ : ±5% rdg
Dimensions	170(L) × 120(W) × 95(D)mm
Weight (battery included)	Approx. 930g
Power source	1.5V(AA) × 8
Safety standard	EN 61010-1 EN 61326-1
