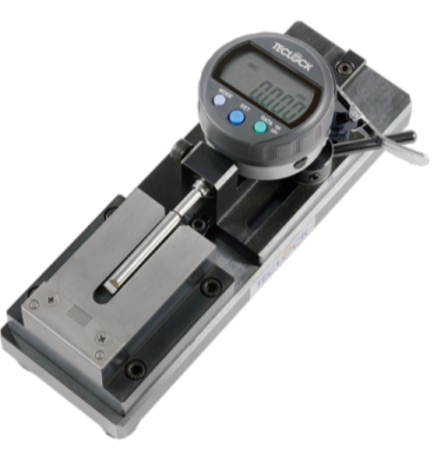

TECLOCK Digital Inside Comparator FM-60J (10~60mm/0.001mm)

Manufacturer: TECLOCK

Model: FM-60J

Origin: Japan

Warranty: 12 months


Measuring Range: 10~60 mm

Resolution: 0.001 mm

Accuracy:  0.003 mm

Measuring Force: 1.5 N or less

Details

Catalog


 • These are exclusive equipments which comparatively measure dimension of internal diameter and outer diameter.

 • After placing master gauge on measuring table and setting up standard value (zero point set up), tolerance judging measurement against standard value is possible by measuring work piece.

 • Cemented carbide is provided to stylus and anvil (anvil pin).

 • Special made products are complied for the measuring range except for below.
