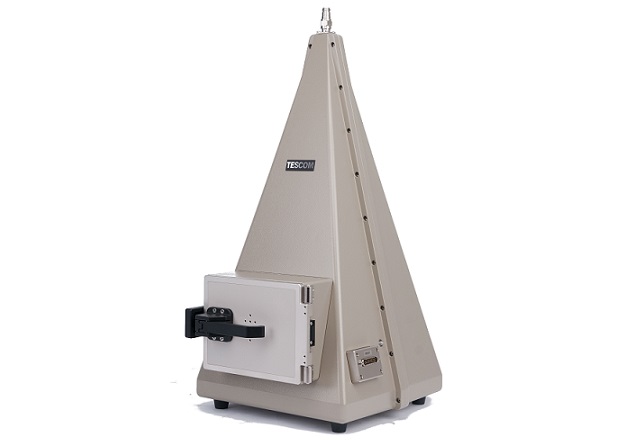

TESCOM TC-5062C 6GHz TEM Cell

  • Manufacturer: Tescom
    Model: TC-5062C
    Origin: Korea
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: TESCOM

Model:  TC-5062C

Origin: Korea

Warranty: 12 months


VSWR: < 1.7 , 100 MHz ~ 6 GHz

Effective Cell Height: 220 mm

Field Strength at Center of Cell: 13 dB mV/meter at 1 mV input

RF Connectors without module: 1 N(f) topside, 1 SMA(f) outside and SMA(f) inside

Dimension:    Inside 240(W) x 205(D) mm

- Outside 344(W) x 403(D) x 675(H) mm

- Door Size: 176(W) x 130(H) mm

Weight: approx. 21 kg

Packing Size:  470(W) x 550(D) x 830(H) mm

Packing Weight:  Approx. 25 kg

Typical RF Shielding

- 100 to 2000 MHz:  > 80 dB

- 2000 to 3000 MHz:  > 80 dB

- 3000 to 6000 MHz:  > 60 dB

* The shield effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the TEM Cell.


Detail

Datasheet


- Features:

Radiation and susceptibility test

Broadband TEM Cell up to 6 GHz

Small size, Small footprint for desktop application

High effective shielding

Specifically designed for all types of mobile phones

Able to install DUT Rotator

- Applications:

Receiver sensitivity testing, Transmitter radiated power testing

EMI and EMS tests for small Wireless devices
