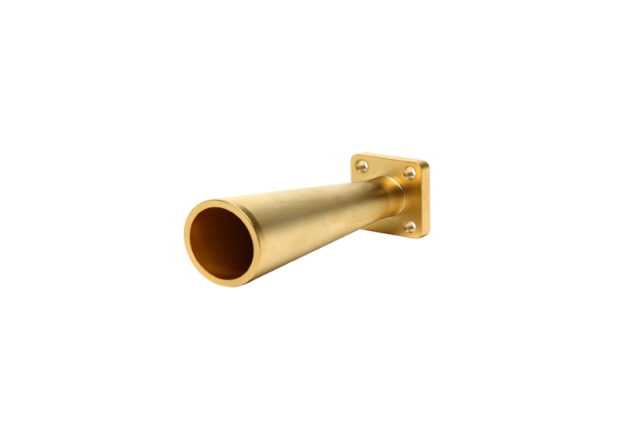

Tescom TC-93471A Circular Horn Antenna (26.5-40 GHz)

  • Manufacturer: Tescom
    Model: TC-93471A
    Origin: Korea
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

     Hanoi city: (024) 35.381.269

     Danang city: (023) 63.747.711

     HCM city: (028) 38.119.636

Configurations

- Antenna Type : Circular Horn Antenna

- Waveguide : WR-28

- Flange Type : FBP320

Electrical Specifications

- Frequency Range : 26.5 GHz to 40 GHz

- Normal Gain, dBi : 14.5 dBi

- VSWR : < 2

- Impedance : 50 Ω

Mechanical Specifications

+ Size(mm) : 55(L) x 20(W) x 20(H)

+ Weight : approx. 52 g

Details

Datasheet


Key Features:

+ 26.5 ~ 40GHz Frequency Range

+ WR-28 Waveguide Interface with Precision Tolerance FBP 320 flange

Typical Performance Data
