- Đo TEV:
Dải đo: 0-60 dBmV
Độ phân giải: 1dB
Độ chính xác: ±1dB
Xung tối đa mỗi chu kỳ: 1400
Dải tần số đo: 3~100MHz
- Đo AE:
Dải đo: -6dBμV đến 68dBμV
Độ phân giải: 1dB
Độ chính xác: ±1dB
Dải tần: 20~200 kHz
- Đo AA:
Dải đo: -6dBμV~68dBμV
Độ phân giải: 1dB
Độ chính xác: ±1dB
Tần số trung tâm cảm biến: 40 kHz
- Đo UHF:
Tần số phát hiện: 300-2000MHz
Dải đo: 0-60 dBmV
Độ nhạy: <1dBm
Dải tần cảm biến: 300-2000MHz
- Đo HFCT:
Trở kháng truyền cảm biến: 5mV/mA
Tần số phát hiện: 1~30MHz
Độ nhạy: ≤50pC
- Phần cứng:
Vỏ: ABS
Màn hình: Màn hình LCD RGB 4.0 inch, độ phân giải 800*480
Độ chính xác lấy mẫu: 12bit
Chế độ đồng bộ hóa: Đồng bộ hóa bên trong, đồng bộ hóa bên ngoài
Kết nối: Cổng giao diện USB (cũng là đầu vào bộ sạc) WIFI; giắc cắm tai nghe âm thanh stereo 3.5 mm; Giao diện đầu vào cảm biến bên ngoài
Tai nghe: tối thiểu 8 Ω
Thẻ SD: Cấu hình tiêu chuẩn 16G ~ 64G
Pin tích hợp: Pin lithium 3.7V/5000mAh
Giờ hoạt động: Khoảng. 6 tiếng
Bộ sạc: AC 90-264V hoặc DC 5V
Nhiệt độ hoạt động: -20 ~ 50℃
Độ ẩm: 20-85% độ ẩm tương đối
Khối lượng và trọng lượng: 210 * 100 * 35 (mm) 0.4kg (máy chính)
General Information:

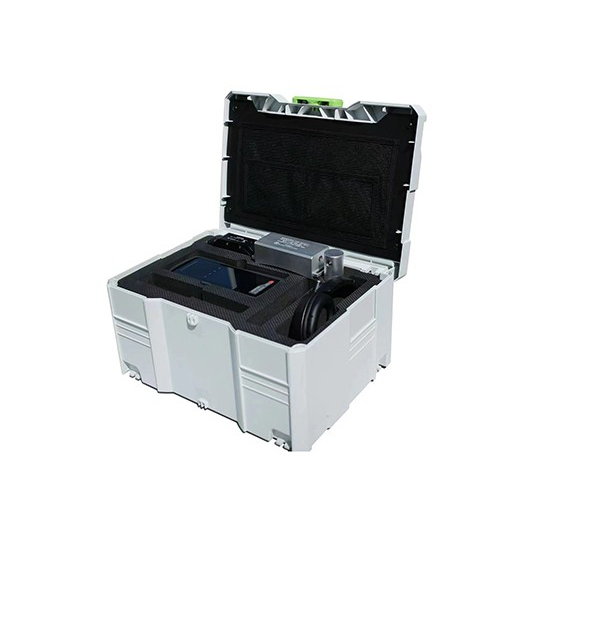

EPJF-8000 Hand-held Partial Discharge Detector can be widely used in partial discharge detection of power system, including high voltage switchgear, ring network cabinet, voltage / current transformer, transformer (including dry type transformer), GIS, overhead line, cable and other equipment insulation state detection, through the following indicators to measure the discharge degree of electrical equipment:
Partial discharge intensity detection: by measuring the discharge signal in one power frequency cycle, the partial discharge intensity is characterized according to the maximum value (dB) in the discharge pulse sequence.
Partial discharge frequency detection: by measuring the discharge signal in one power frequency cycle, the discharge pulse is extracted and the partial discharge frequency is characterized according to the number of discharge pulses.
Features:
-Configure different sensors to achieve partial discharge detection of almost all high-voltage electrical equipment.
-Provide time domain waveform, PRPD, PRPS and other discharge patterns to realize the analysis of different discharge types.
-Humanized man-machine interface facilitates data management of different devices.
-Built-in ultrasonic sensor and transient ground voltage (hereinafter referred to as TEV) sensor, which can be connected with special sensors such as transformers, GIS, overhead lines, cables, etc.
-Adopts non-intrusive detection method, no need to power off during the test process, no need to configure additional high voltage source, it is more convenient to use than traditional pulsed partial discharge detector.
-The test bandwidth range is 30kHz ~ 2.0GHz, which is suitable for detection principles of various frequency bands.
