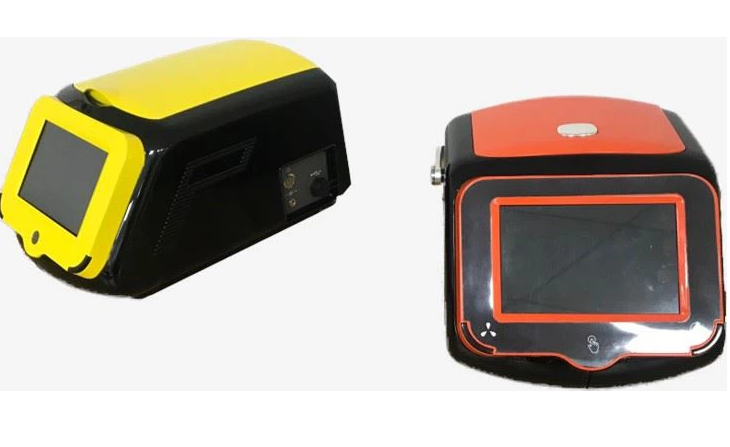

Máy phân tích nguyên tố EDXRF ESi EDX9000B

Kích thước máy quang phổ: 560mmx380mmx410mm

Kích thước buồng mẫu: 460mmx310mmx95mm

Kích thước buồng mẫu chân không: Φ150mm×75mm

Trọng lượng: 45Kg

Dải nguyên tố: Na11-U92

Dải phân tích hàm lượng: 1ppm- 99.99%

Đầu dò: SDD độ phân giải cao AmpTek

Bộ phân tích: Bộ phân tích DPP 4096 kênh

Nguồn kích thích: Ống tia X công suất 50W

Bộ cao áp: 0-50kV

Nguồn điện: 220ACV 50/60HZ

Môi trường làm việc: -10 °C - 35 °C

Phụ kiện

Tiêu chuẩn

Mẫu chuẩn hiệu chuẩn Ag

Bơm chân không

Cốc mẫu

Cáp USB

Dây nguồn

Màng Mylar thử nghiệm

Báo cáo hiệu chuẩn

Thẻ bảo hành

Optional:

Máy nghiền mẫu

Máy ép mẫu

Lò sấy

Máy tạo viên nung

Cân

Mẫu chuẩn khoáng

Ổn áp nguồn

EDXRF Applications

EDXRF spectrometers are the elemental analysis tool of choice, for many applications, in that they are smaller, simpler in design and cost less to operate than other technologies like inductively coupled plasma optical emission spectroscopy (ICP-OES) and atomic absorption (AA) or atomic fluorescence (AF) spectroscopy. Examples of some common EDXRF applications are: Cement and raw meal: sulfur, iron, calcium, silicon, aluminum, magnesium, etc; Kaolin clay: titanium, iron, aluminum, silicon, etc; Granular catalysts: palladium, platinum, rhodium, ruthenium, etc; Ores: copper, tin, gold, silver, etc; Cement and mortar fillers: sulfur in ash; Gasoline, diesel and RFG: sulfur, manganese, lead, etc; Residual gas oils: sulfur, chlorine, vanadium, nickel, etc; Secondary oil: chlorine, etc; Kerosine, naphtha: sulfur, etc; Crude oil and bunker fuels: sulfur, vanadium, nickel, etc; Plating, pickling & pre-treatment baths: gold, copper, rhodium, platinum, nickel, sulfates, phosphates, chlorides, etc; Acetic acid: magnesium, cobalt and bromine; Terephthalic acid (TPA): cobalt, manganese, iron, etc; Dimethyl terephthalate (DMT): heavy metals; PVC copolymer solutions: chlorine; Photographic emulsion: silver; Clay: metals and non-metals; Waste and effluent streams: RCRA metals, chlorides, phosphates, etc; Food, pet food and other animal feed: potassium, phosphorus and chlorine; Cosmetics: zinc, titanium, calcium, manganese, iron, silicon, phosphorus, sulfur, aluminum, and sodium; Wood treatment: CCA, Penta, ACQ, ACZA, phosphorus-based fire retardants, copper naphthanate, zinc napthanate, TBTO, IPBC and combinations of these; Antacids: calcium; and Toothpaste: phosphorus and tin.
