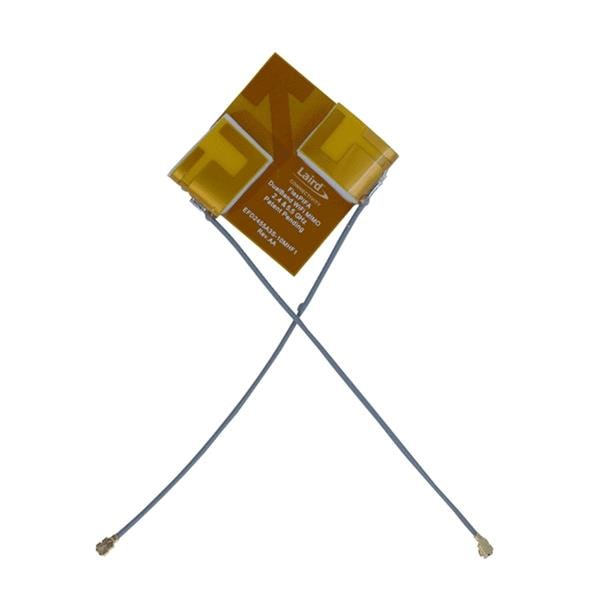

MIMO FlexMIMO Ezurio EFD2455A3S-10MHF1

Gain: 1.7 dB, 2.5 dB

VSWR: 2.5:1, 3:1

Style: I-Bar Flex

Width: 33.25 mm

Height: 4.44 mm

Length: 33.25 mm

Impedance: 50 Ohms

Cable Type: RF1.13

Unit Weight: 1.800 g

Cable Length: 100 mm

Polarization: Linear

Power Rating: 10 W

Mounting Style: Adhesive Mount

Electrical Type: MIMO

Number of Bands: 2 Band

Center Frequency: 2.4 GHz, 5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.9 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF1

Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac, WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
