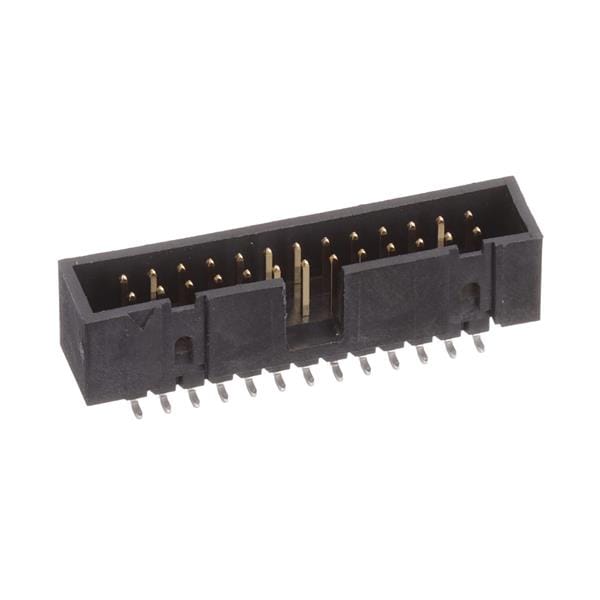

Bọc bảo vệ QUICKIE KHÁC Amphenol FCI 72454-026VLF

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board

Row Spacing: 2.54 mm (0.1 in)

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 1 A

Mounting Angle: Straight

Mounting Style: SMD/SMT

Number of Rows: 2 Row

Voltage Rating: 1 kV

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT)

Termination Style: Solder

Mating Post Length: 5.84 mm (0.23 in)

Number of Positions: 26 Position

Insulation Resistance: 50 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 65 C
