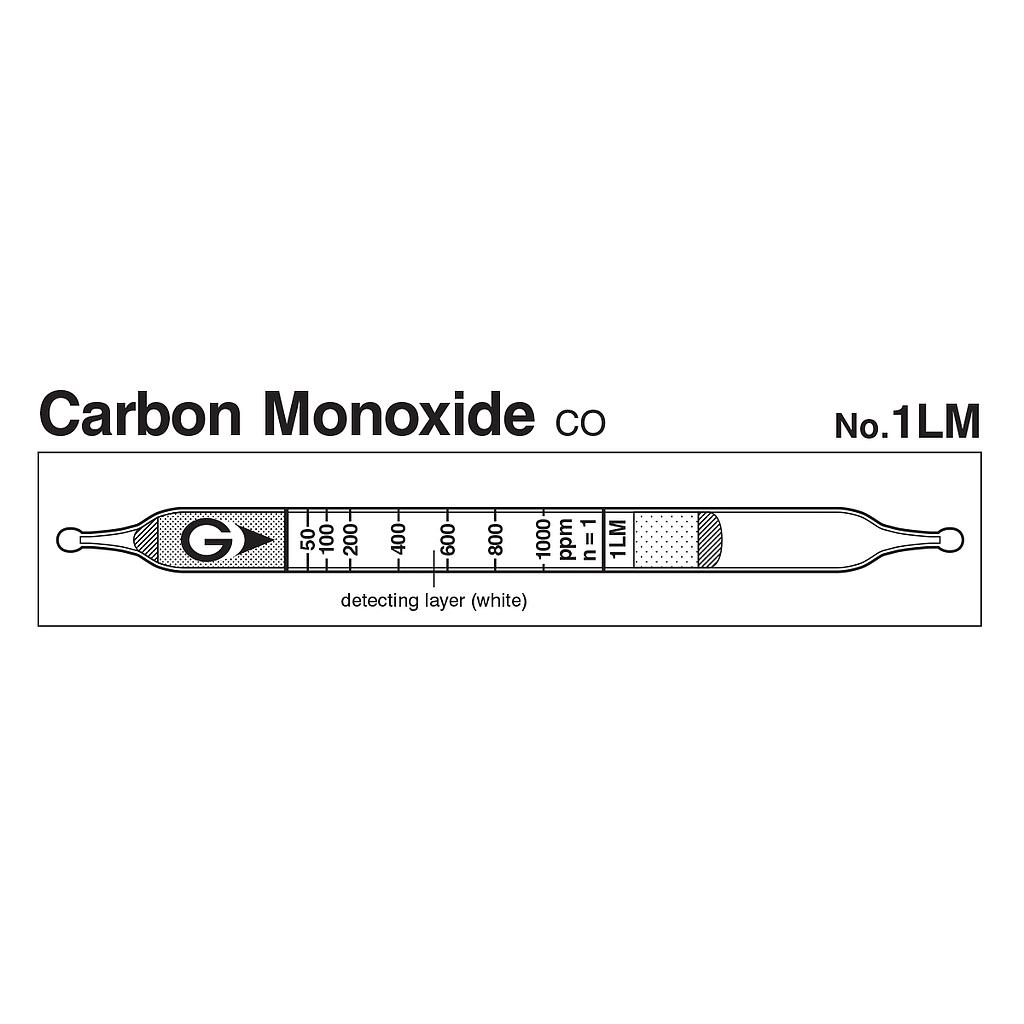

Ống test nhanh khí Carbon monoxide CO Gastec 1LM (25 ~ 2000 ppm)
Hãng sản xuất: Gastec Model: 1LM - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0345.689.536
Vạch chỉ thị: 50 ~ 1000 ppm
Thang đo:
+ 25 ~ 50 ppm, bơm 2 lần
+ 50 ~ 1000 ppm, bơm 1 lần
+ 1000 ~ 2000 ppm, bơm 1/2 lần
Thời gian lấy mẫu: 45 giây mỗi lần bơm
Chuyển đổi màu: Trắng → nâu nhạt / xanh lá cây nhạt
Phương trình phản ứng: 5CO + I2O5 + H2S2O7 → I2
Hệ số biến đổi: 10% (50 ~ 200 ppm), 5% ( 200 ~ 1000 ppm)
Số ống trong hộp: 10
Dùng thích hợp với bơm: GV-100S/110S
Measuring Range |
|
|||
Number of Pump Strokes |
|
|||
Correction Factor |
|
|||
Sampling Time | 45 seconds per pump stroke | |||
Detecting Limit | 5 ppm (n=2) | |||
Colour Change | White → Pale brown / Pale green (dual layers) | |||
Reaction Principle | 5CO + I2O5 + H2S2O7 → I2 | |||
Coefficient of Variation | 10% (for 50 to 200 ppm), 5% (for 200 to 1000 ppm) | |||
Shelf Life | 3 Years | |||
Corrections for temperature & humidity | Unnecessary | |||
Store the tubes at cool and dark place. |
Substance | Concentration | Interference | Change colour by itself to |
Acetylene, Olephines, Propane, Hexane | + | Pale brown | |
Butane | + | Pale brown | |
Hydrogen | No | No |
Calibration gas generation | High pressure gas cylinder method |
TLV-TWA | TLV-STEL | Explosive range |
25 ppm | - | 12.5 to 74% |
