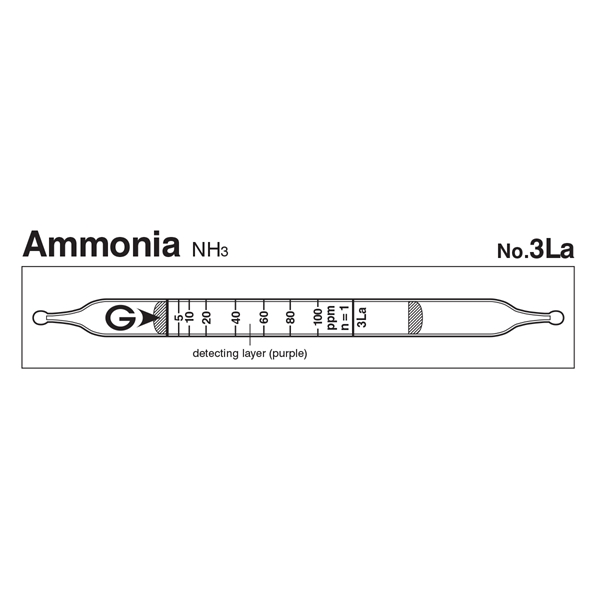

Ống phát hiện nhanh khí Ammonia NH3 Gastec 3La

Vạch chỉ thị: 5 ~ 100 ppm
Thang đo:
+ 2.5 ~ 5 ppm, bơm 2 lần
+ 5 ~ 100 ppm, bơm 1 lần
+ 100 ~ 200 ppm, bơm 1/2 lần
Thời gian lấy mẫu: 30 giây mỗi lần bơm
Chuyển đổi màu: Tím → Vàng
Phương trình phản ứng: 3NH3 + H3PO4 → (NH4)3PO4
Hệ số biến đổi: 10% (5 ~20 ppm), 5% ( 20 ~ 100 ppm)
Số ống trong hộp: 10
Dùng thích hợp với bơm: GV-100S/110S

Chi tiết

Catalog

Manual

Performance
Measuring Range
2.5 to 5 ppm 5 to 100 ppm 100 to 200 ppm
Number of Pump Strokes
2 1 1/2
Correction Factor
1/2 1 2
Sampling Time 30 seconds per pump stroke
Detecting Limit 0.5 ppm (n=2)
Colour Change Purple → Yellow
Reaction Principle 3NH3 + H3PO4 → (NH4)3PO4
Coefficient of Variation 10% (for 5 to 20 ppm), 5% (for 20 to 100 ppm)
Shelf Life 3 Years
Corrections for temperature & humidity Temperature correction is necessary
Store the tubes at cool and dark place.
Possible coexisting substances and their interferences (NOTE)
Substance Concentration Interference Change colour by itself to
Carbon dioxide 1% No
Hydrazine   + Yellow
Amines 1/15 + Yellow (5 ppm)
Calibration gas generation Permeation tube method
TLV-TWA TLV-STEL Explosive range
25 ppm (2014) 35 ppm (2014) 15 to 28%
