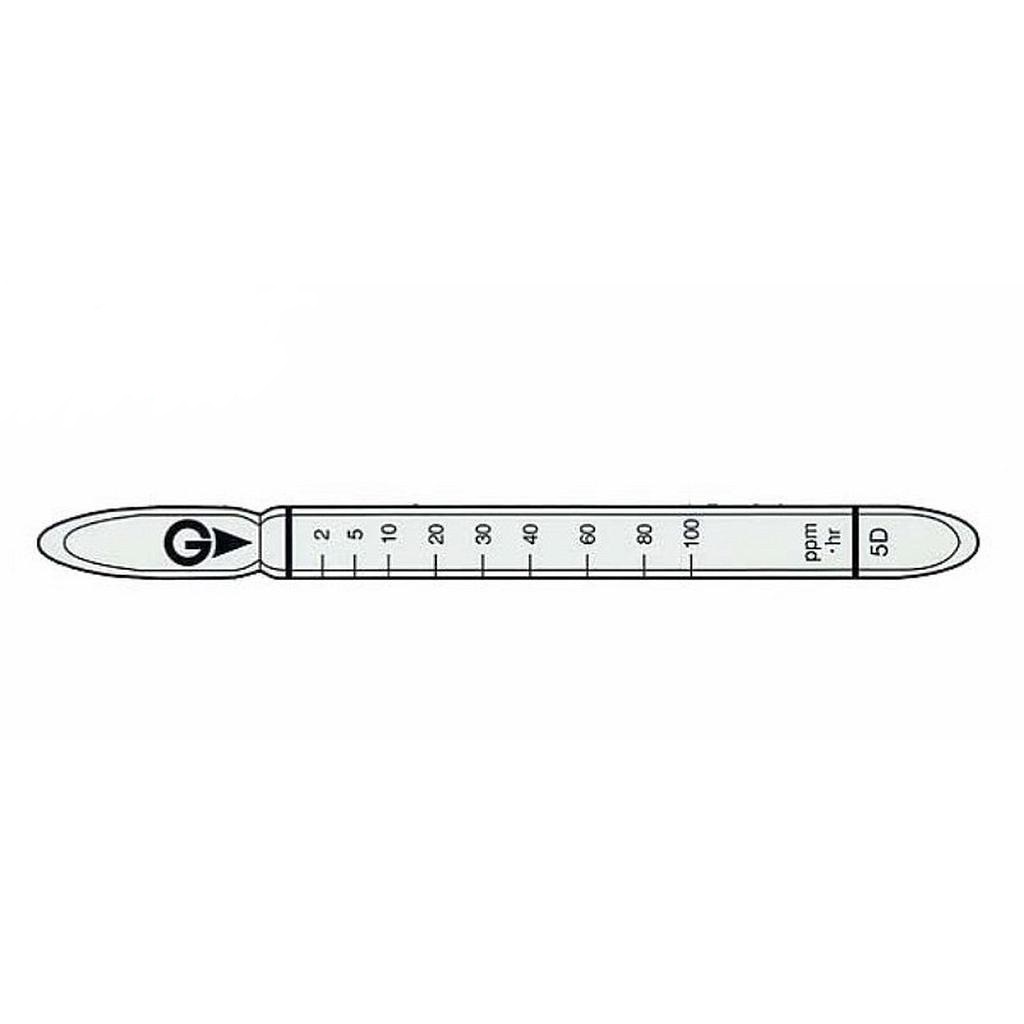

Ống phát hiện thụ động khí sulphur dioxide SO2 Gastec 5D (0.2~100ppm)


Không cần dùng thêm bơm, lắp cố định trong môi trường khí cần đo
Vạch chỉ thị: 2~100ppm
Thang đo: 0.2~100ppm
Thời gian lấy mẫu: 1~10 giờ
Chuyển đổi màu: xanh lá sang vàng
Phương trình phản ứng: SO2 + BaCl2 + H2O → BaSO3 + 2HCl, HCl + Base → Chloride
Hệ số chuyển đổi: 10% (2 ~ 10 ppm-hr),5% (10 ~ 100 ppm-hr)
Số ống trong hộp: 10

Chi tiết

Catalog

sulphur dioxide

  NO.5D
SO2
Performance
Measuring Range 0.2 to 100 ppm
Sampling Hours 1 to 10 hours
Detecting Limit 0.1 ppm (10 hours)
Colour Change Green → Yellow
Reaction Principle SO2 + BaCl2 + H2O → BaSO3 + 2HCl
HCl + Base → Chloride
Coefficient of Variation 10% (for 2 to 10 ppm-hr),5% (for 10 to 100 ppm-hr)
Shelf Life 3 Years
Corrections for temperature & humidity Unnecessary
Store the tubes at cool and dark place.
Possible coexisting substances and their interferences (NOTE)
Substance Concentration Interference Change colour by itself to
Nitrogen dioxide   No
Hydrogen sulphide   + No
Calibration gas generation Permeation tube method
TLV-TWA TLV-STEL Explosive range
- 0.25 ppm (2014) -
