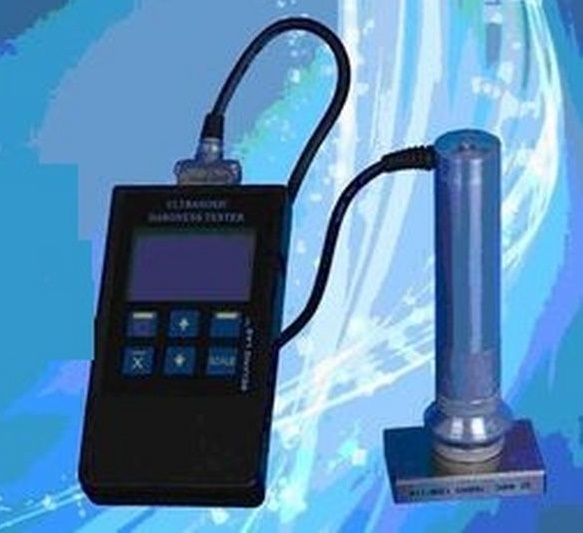

Máy đo độ cứng bằng siêu âm Huatec HUH-1

Name: Máy đo độ cứng bằng siêu âm Huatec HUH-1
Brand: HUATEC
Price: 126960000 VND
Availability: OutOfStock

Có sẵn: 0 Cái

Hãng sản xuấtHUATEC

ModelHUH-1

Xuất xứChina

Giá chưa bao gồm VAT

126,960,000 VND

Giá đã bao gồm VAT

137,116,800 VND

Số lượng

Thanh toán an toàn

Hỗ trợ chuyên nghiệp

Đổi trả dễ dàng

Giao hàng tận nơi

- Giải đo độ ứng
Thang đo Rockwell: 20 - 70
Thang đo Brinell: 90 - 450
Thang đo Vickers: 230 - 940
Độ bền kéo, MPa: 370 - 1740
- Sai số tương đối
Thang Rockwell : ± 1
Thang Brinell : ± 3%
Thang Vickers: ± 3%
- Kích thước: 120x60 x25 mm
- Nguồn: 2 AA batteries
- Trọng lượng: 0.9kg
Cung cấp gồm: máy chính, cảm biến siêu âm 50N, HDSD, cáp cảm biến, pin, hộp đựng, khối cứng

Product information:

It is intended for measuring hardness of metal and alloy articles with Rockwell, Brinell, Vickers. It consists of the dynamic transducer (sensor) and the electronic module.
The principle of tester operation is based on determination of frequency change in free oscillation of the indenter (an acoustic resonator with Vickers diamond pyramid) subjected to the constant force of 50 N.

Advantages:

measuring hardness of both small and large articles
measuring hardness of complexly shaped articles, with hard to reach places, in various spatial positions
convenience and ease of use
PC-connectable via RS-232C interface
high measuring performance
power source discharge indication and display illumination
graphical display with lighting
storing 6000 hardness measurements in the nonvolatile memory
supply of reference blocks on request

Main technical parameters

Hardness measurement ranges Rockwell Scale Brinell Scale Vickers Scale Tensile strength, MPa	20 - 70 90 - 450 230 - 940 370 - 1740
Relative measurement error Rockwell Scale Brinell Scale Vickers Scale	± 1 ± 3% ± 3%
Chief dimensions	120x60 x25 mm
Category temperature range° C	-5 - +40
Power supply	2 AA batteries
Time of continuous work hours	not less than 100 Hours
Weight of electronic module with sensor	0.9kg

Parameters for Ultrasonic hardness probe and Leeb hardness probe

	Ultrasonic hardness probe	Leeb hardness probe
Length	160mm	140mm
Diameter	25mm	25mm
Indention depth	30μm	300 μm
Test force	14.7N	11Nm
Probe testing life	200,000 times	50,000 times
Min.testing thickness (steel)	1mm	12mm
Min. testing radius	5mm	10mm
Max.surface roughness	Ra 2.5 μm	Ra 3.2 μm
Data memory	1000 datas	100 datas
Tesing time	4 second	2 second
