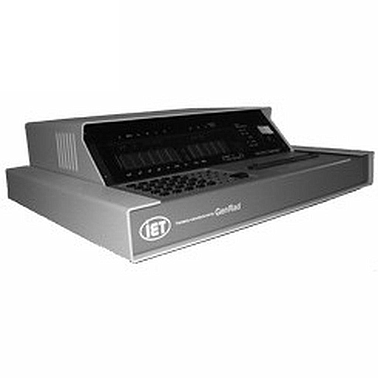

Máy đo LCR để bàn IETLAB GenRad 1692 (0.05%; 100Hz tới 100kHz)

( Khách hàng chọn model, thông số chi tiết tại mục Datasheet, Download/video. )

Độ chính xác 0.05%
5 tần số đo 100Hz tới 100kHz
5 thông số trở kháng

Chi tiết

datasheet

manual

GenRad 1692 LCR Meter Basic Specifications

(See datasheet for full specifications)

Accuracy: Basic RLC ±0.05%. Basic DQ ±0.0003
Measurement Parameters: R/Q, L/Q, C/R, C/D (series or parallel)
Test Frequencies: 100Hz, 120Hz, 1 kHz, 10 kHz, 100 kHz
Test Frequency Accuracy ±0.01%.
Applied Voltage: 0.3V to 1.0VRMS maximum
Measurement Speed: 2, 4 or 8 measurements/second for Slow, Medium or Fast.
Measurement Mode: Continuous, Triggered (single, or 1 to 10 measurements averaged).
Display Format: Dual Display featuring 5 full digit LED for RLC and 4 full digit LED for DQ Bin Number,Value Automatically positioned decimal points and minus signs where appropriate. Individual LED indicators for parameters, units, and measurement conditions. GO/NO GO lights
Bias: Internal 2.0VDC External up to 60VDC
Automatic Functions: Auto ranging with manual hold, Auto parameter (RLC) with manual selection
Binning: Eight pass bins for RLC Two fail bins, RLC and DQ
Interfaces: IEEE-488 Interface option
Ranges:

Parameter
  RLC DQ
R/Q 0.00001Ω to 99999MΩ 0.0001 to 9999
L/Q 0.00001mH to 99999H 0.0001 to 9999
C/D 0.00001pF to 99999mF  0.0001 to 9999
C/R 0.00001nF to 99999mF  0.0001Ω to 9999kΩ

Basic DQ ±0.0003
Zeroing: Open and short circuit compensation.
General Features: • Charged Capacitor Protection (1 Joule) • Keyboard Lock• Store Test Conditions
Dimensions: (w x h x d): 14.8 x 4.4 x 13.5in (375 x 112 x 343mm)
Weight: 10 lbs. (4.5kg) net, 15 lbs. (6.8kg) shipping.
Accessories Supplied: • Power Cable • Axial Lead Adapters • Test Fixture (Built-in) • Instruction Manual

The GenRad 1692 LCR Meter is an RLC passive component tester that gives you the most cost effective alternative to high-priced LCR testers. It's designed for the demanding applications in production testing, incoming inspection, component design and evaluation. It provides superior testing performance and capability at the lowest cost.

The GenRad 1692 LCR Meter is a sophisticated, microprocessor-controlled tester that brings new levels of flexibility, simplicity and accuracy to RLC measurement. It's testing automation at its best with a range of programmable test frequencies and test voltages, as well as automatic limit comparison, automatic parameter selection, remote programmability, automatic binning and automatic zeroing. The display facilitates visual acquisition of test data and eliminates costly guesswork and errors. The 1692 LCR Meter provides a powerful combination of features designed to maximize productivity in production testing applications.

GenRad 1692 LCR Meter Features

  • *0.05% Accuracy for RLC measurements; 0.0003 for D and Q measurements.
  • *Five selectable test frequencies: 100Hz, 120Hz, 1kHz, 10kHz and 100kHz for greater versatility in component testing
  • *Choice of two commonly specified AC test voltages.
  • *Three keyboard-selectable test speeds; 2,4 or 8 measurements per second complements automatic handling equipment to maximize throughput.
  • *A choice of two measurement modes; Triggered and Continuous with averaging available in each ensures measurement flexibility.
  • *Wide choice of measurement parameters allow you to work with familiar units.
  • *A full, five-digit LED display for RLC measurements and a four-digit readout for D and Q testing, simultaneously display both test results for each measurement, automatically
  • *Guarded Kelvin measurement techniques protect measurement integrity.
  • *Automatic limit comparison and binning ensure fast, mistake-proof sorting of components.
  • *Optional IEEE-488 Bus and Handler Interface enable remote programming and allow the addition of a component handler to optimize throughput.
