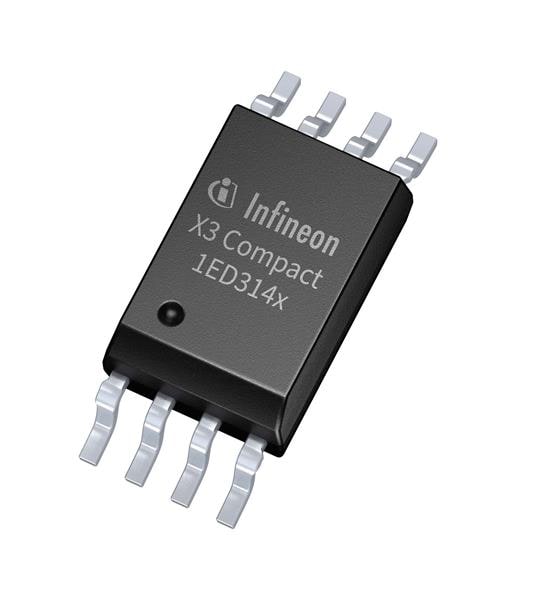

Bộ Điều Khiển Cổng Cách Ly ISOLATED DRIVER Infineon 1ED3141MC12HXUMA1

Fall Time: 20 ns

Rise Time: 20 ns

Configuration: Single

Mounting Style: SMD/SMT

Output Current: 6 A

Isolation Voltage: 1.249 kV

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Input Voltage - Max: 15 V

Input Voltage - Min: 3 V

Supply Voltage - Max: 15 V

Supply Voltage - Min: 3 V

Pd - Power Dissipation: 500 mW

Propagation Delay - Max: 50 ns

Maximum Turn-On Delay Time: 50 ns

Maximum Turn-Off Delay Time: 50 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Maximum Continuous Output Current: 6.5 A
