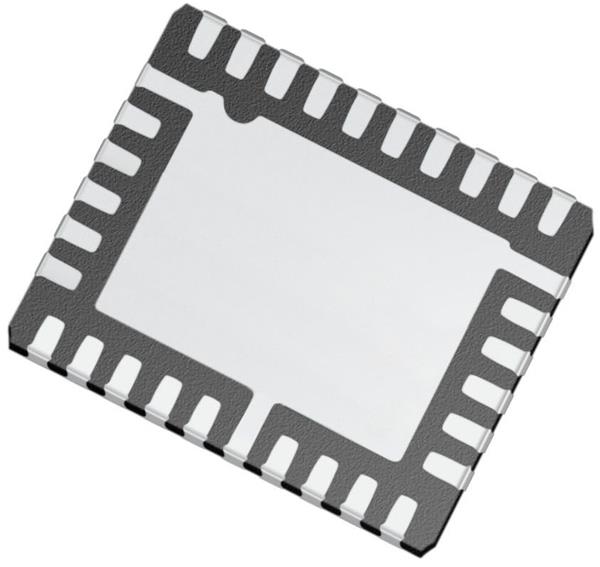

Radar MMW_AUTOMOTIVE Infineon BGT24ATR22E6433XUMA1

Dimensions: 5.5 mm x 4.5 mm x 0.9 mm

Sensitivity: 8.8 LSB/K

Output Power: 3 dBm

Interface Type: I2C

Mounting Style: SMD/SMT

Development Kit: DEMO BGT24ATR22 V2

Frequency Range: 24 GHz to 24.25 GHz

Modulation Format: FSK

Moisture Sensitive: Yes

Number of Receivers: 2 Receiver

Supply Voltage - Max: 3.465 V

Supply Voltage - Min: 1.71 V

Number of Transmitters: 2 Transmitter

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 140 mA

Supply Current Transmitting: 140 mA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
