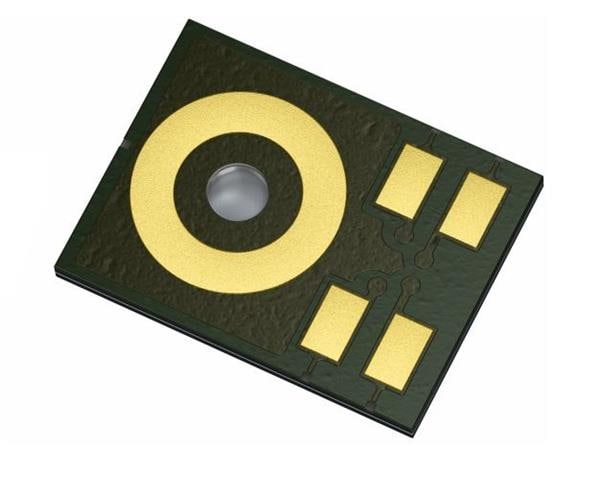

Micrô MEMS MIC SDM Tương tự Infineon IM73A135V01XTSA1

Depth: 1.2 mm

Shape: Rectangular

Width: 3 mm

Length: 4 mm

Impedance: 250 Ohms

Port Type: Bottom

Tolerance: 1 dB

Dimensions: 4 mm x 3 mm x 1.2 mm

Output Type: Analog

Sensitivity: - 38 dB

Mounting Style: SMD/SMT

Frequency Range: 20 Hz to 20 kHz

Termination Style: SMD/SMT

Supply Voltage - Max: 3 V

Supply Voltage - Min: 2.3 V

Directional Properties: Omnidirectional

Operating Supply Current: 170 uA

Operating Supply Voltage: 2.3 V to 3 V

SNR - Signal to Noise Ratio: 73 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
