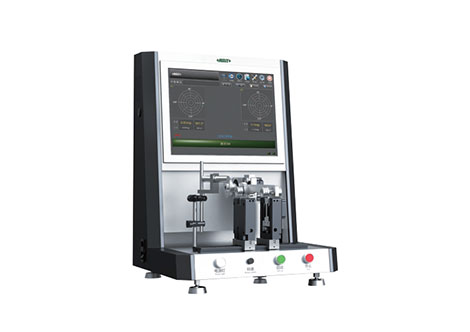

Horizontal Soft Bearing Balancing Machines INSIZE ITU-S3K (0.2~3kg)

Structural type: B (split type)

Workpiece weight range: 0.2~3kg

Maximum workpiece diameter: 160mm

Roller bearing journal diameter range: 3~25mm

Supporting rotor span range: 60~320mm

Balance test speed range: 400~4800rpm

Balance test surface: double-side

Unbalanced quantity detection: accelerometer

Unbalanced quantity angle detection: laser sensor/magnetic pole sensor

Minimum attainable residual imbalance: ≤0.3g.mm/kg

Unbalance reduction rate URR: ≥95%

Drive mode: flat belt drive

Dimension (L×W×H): 1000×450×760mm

Power supply: AC 220V, 50Hz
