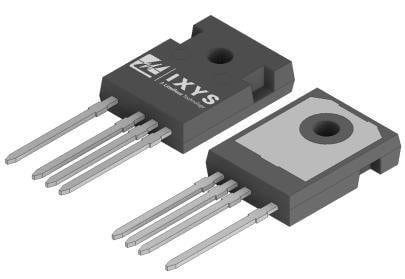

SiC MOSFETS TO247 1.2KV 50A N-CH SiC IXYS LSIC1MO120G0040

Fall Time: 8 ns

Rise Time: 9 ns

Technology: SiC

Channel Mode: Enhancement

Configuration: Single

Mounting Style: Through Hole

Qg - Gate Charge: 175 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 357 W

Vgs - Gate-Source Voltage: - 5 V, + 20 V

Typical Turn-On Delay Time: 13 ns

Typical Turn-Off Delay Time: 22 ns

Id - Continuous Drain Current: 70 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 50 mOhms

Vds - Drain-Source Breakdown Voltage: 1.2 kV

Vgs th - Gate-Source Threshold Voltage: 4 V
