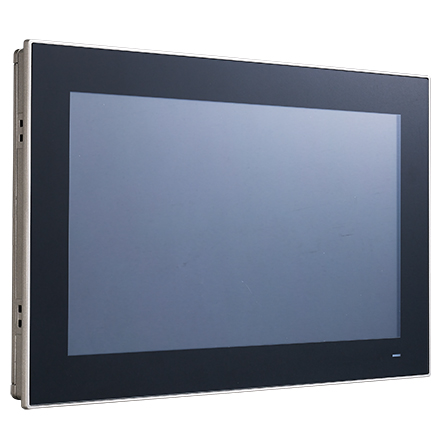

Advantech PPC-3210SW Fanless Panel PC with Intel Celeron N2930 Processor (Intel Celeron N2930; TFT LCD 21.5 inch)

CPU: Intel Celeron N2930

Cores: Quad core

Frequency: 1.83 GHz

L2 Cache: 2 MB

Memory: Memory 1 x SODIMM DDR3L 1333 MHz (max. 8 GB)

Storage: 1 x 2.5 inch SATA bay (optional; requires a bracket module for installation); 1 x mSATA bay (default)

Network (LAN): 2 x 10/100/1000 Mbps Ethernet (Realtek 8119i)

I/O: 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS); 2 x USB 2.0, 1 x USB 3.0

Expansion: 1 x Full-size mini PCIe slot

Watchdog Timer: 255 timer levels, set up by software

Dimensions: 558.4 x 349.8 x 56.2 mm (22 x 13.8 x 2.2 in)

Weight: 7.5 kg (16.5 lb)

OS Support: Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux

Input Voltage: 12 ~ 24 VDC

Power Consumption: 25W (Burn-in test 7.0 in Windows 7, 32-bit)

Display Type: 21.5 inch TFT LCD (LED backlight)

Resolution: 1920 x 1080

Viewing Angle: 89 (left), 89 (right), 89 (up), 89 (down)

Luminance (cd/m2): 300

Contrast Ratio: 5000

Backlight Lifetime: 50,000 hr

Touch Type: 10-point multi-touch projected capacitive

Light Transmission: 90 % ± 3 %

Controller: USB interface

Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity: 95% @ 40 °C (non-condensing)

Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC: CE, FCC Class B, BSMI, UKCA

Safety: CB, UL, CCC, UKCA

Front Panel Protection: IP66 compliant
