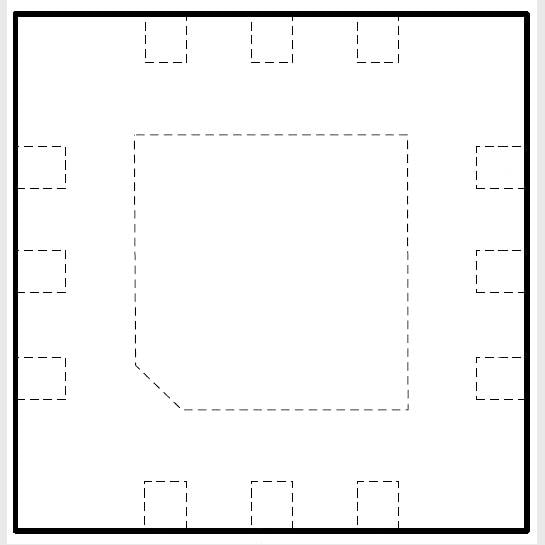

Analog Devices MAX25611BATC/VY+ HBLEDコントローラー 高電圧LEDコントローラー

Features: PWM Dimming, Short Circuit and Thermal Protection

Topology: Boost, Buck, SEPIC

Input Voltage: 5 V to 36 V

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 50 mA

Output Voltage: Adjustable

Number of Outputs: 1 Output

Number of Channels: 1 Channel

Input Voltage - Max: 36 V

Input Voltage - Min: 5 V

Operating Frequency: 2.2 MHz

Supply Current - Max: 3.5 mA

Pd - Power Dissipation: 1.951 W

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
