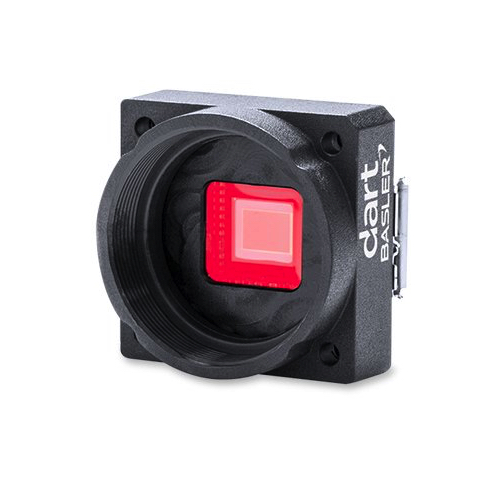

Basler daA1920-30uc - MT9P031 CS-Mount Area Scan Camera (1920 x 1080 px; onsemi MT9P031; CS-mount)

Resolution (H x V Pixels): 1920 x 1080

Resolution: 2 MP

Sensor Type: onsemi MT9P031 / Progressive scan CMOS / Rolling shutter

Sensor Format: 1/3.7 inch

Effective Sensor Diagonal: 4.85 mm

Pixel Size (H x V): 2.2 x 2.2 μm

Frame Rate (at Default Settings): 30 fps

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Programmable via the camera API

Camera Power Requirements: ≈1.3 W (typical) @ 5 VDC

I/O Lines: 2 general purpose I/O (GPIO) lines

Lens Mount: CS-mount

Size (L x W x H): 20 x 29 x 29 mm

Weight: <15 g

Conformity: CE (includes RoHS), EAC, UL Listed, GenICam 2.x (including PFNC 1.x and SFNC 2.x), USB3 Vision, REACH, KC

Software: Basler pylon Camera Software Suite (version 6.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android
