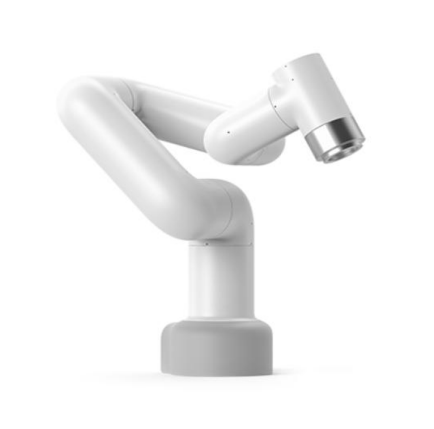

Elephant Robotics myCobot Pro 630 Robotics Arm

DOF: 6

Reach: 630 mm

Payload: ≤ 2 Kg

Repeatability: ±0.1 mm (Standard) ISO 9283

Life Span: >10000 h

Power Supply: DC 48V

Joint Ranges:

J1: ±360°

J2: ±135°

J3: ±135°

J4: ±150°

J5: ±360°

J6: ±360°

Supported Operating Systems: Windows; Linux; Mac

Communication Protocols: TCP/IP-Socket; MODBUS; EtherNet/IP

Programming Languages and Software: ROS 1; ROS 2; myBlockly; myStudio; Matlab; Python; C++

Connectivity: WiFi-2.4G/5G; BT–2.4G/5G; USB 2.0 *2; USB 3.0 *2; RJ45 *1; RS 458

Video Output: MicroHDMI *2 supports wireless VNC connectivity

Base Out Power: 24V 2A (Max)

Base INPUT: 24V 50mA(Max) NPN *6

Base OUTPUT: 24V 50mA(Max) PNP *6

Tools Out Power: 24V 2A (Max)

Tools INPUT: 24V 50mA(Max) NPN *2

Tools OUTPUT: 24V 50mA(Max) PNP *2
