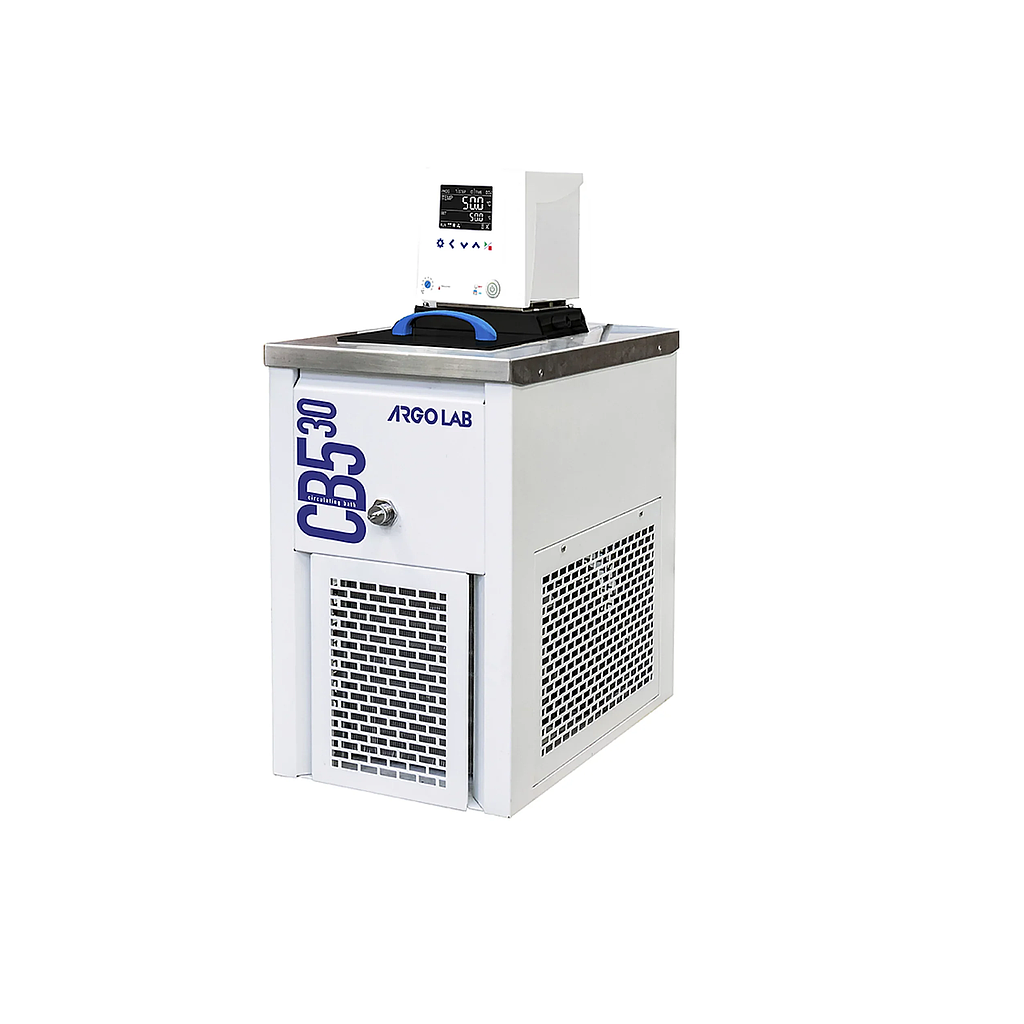

Giorgio Bormac CB 5-30 Refrigerated/Heating Circulating bath (5 L)

Standards applied

Regulations: 2006/95/EC - 2004/108/EC - EN61326-1:2006 - EN61010-1:2010 - EN61010-2-010:2003

Performance

Temperature Range: -30 ... +100 °C

Capacity: 5 L

Minimum overall height with lid fully closed: 150 mm

Temperature Resolution: 0.1 °C

Temperature fluctuation at 20 °C: ±0.2

Volume: 5 L

Display: LCD

Timer: 99:59 hh:mm

Security Class (DIN 12880): 2

Circulation Type: Forced circulation

Pump: Yes

Maximum Pump Flow Rate [l/min]: 3.2 l/min

Maximum Pump Pressure [bar]: 0.35

Power: 2600 W

Inner Tank Depth: 150 mm

Overtemperature Safety System: Electronic

Refrigerant Quantity: 130 g

Refrigerant: R290

External Circulation: Yes

Refrigeration Capacity at 20 °C: 440 W

Refrigeration Capacity at 10 °C: 400 W

Refrigeration Capacity at 0 °C: 370 W

Refrigeration Capacity at -10 °C: 320 W

Refrigeration Capacity at -20 °C: 200 W

Refrigeration Capacity at -30 °C: 150 W

Feeds

Frequency: 50 Hz

Power Supply: 230 V

Dimensions and weight

Weight: 54 kg

External dimension (W x D x H): 380 x 670 x 840 mm

Packaging dimension (W x D x H): 810 x 490 x 1060 mm

Internal Tank dimension (W x D x H): 145 x 150 x 150 mm
