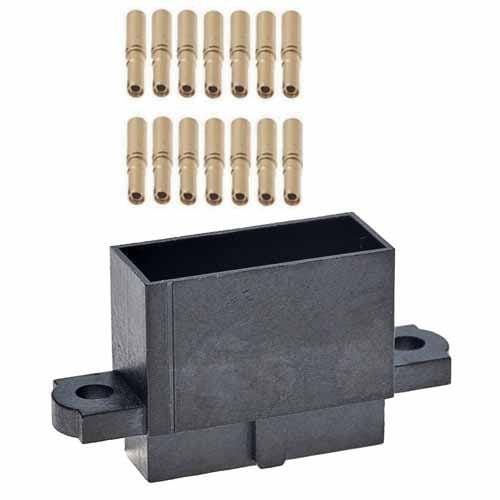

Harwin M80-4763405 ワイヤーハウジング 17+17ウェイ 拡張壁 FM 圧着 S/ボア JSなし

Pitch: 2 mm

Unit Weight: 4.030 g

REACH - SVHC: Details

Housing Color: Black

Contact Gender: Socket (Female)

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Beryllium Copper

Housing Material: Polyphenylene Sulfide (PPS)

Termination Style: Crimp

Number of Positions: 26 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
