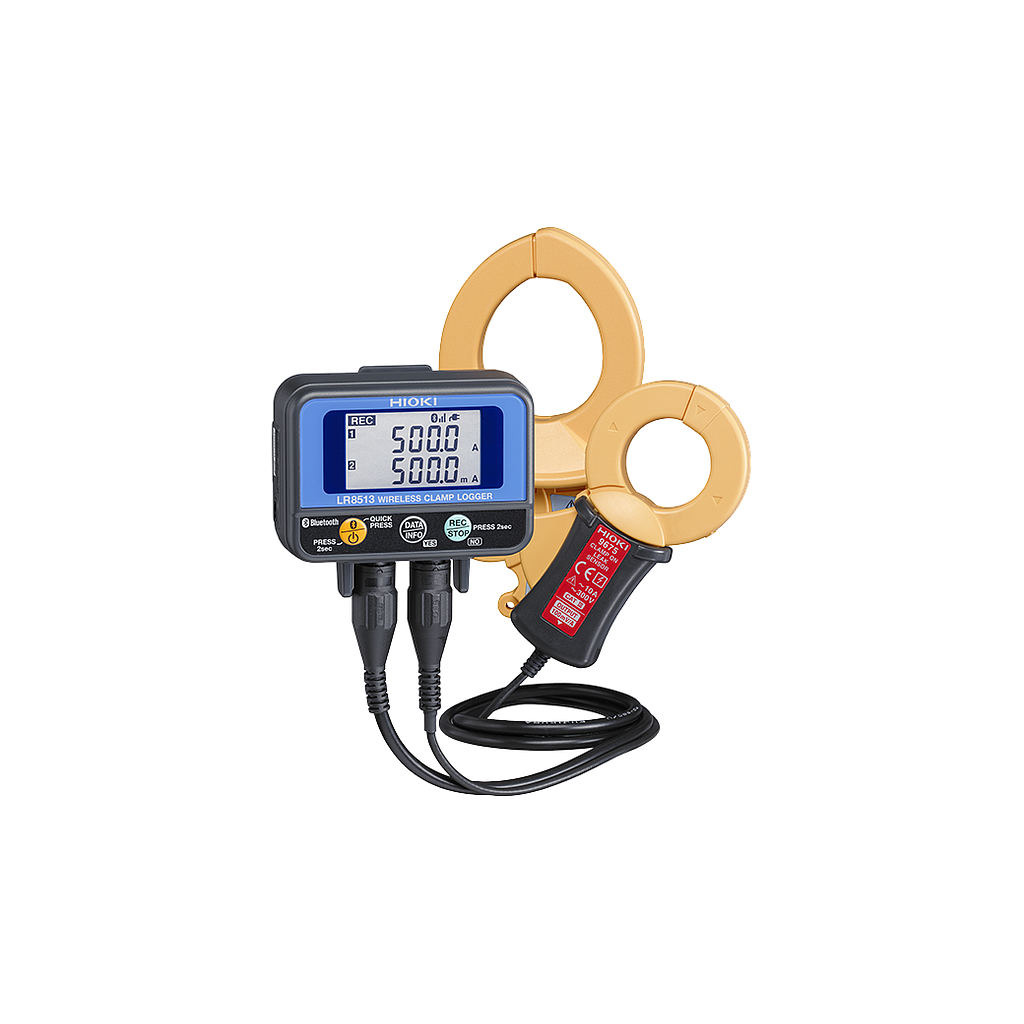

HIOKI LR8513 Wireless Clamp Logger (2000 AAC, 2000 ADC)

Functionality:

Standalone mode (Manual data collection):

Windows PC or Windows tablet (CD-R with software included)

Android smartphone or Android tablet (software downloadable free from Google Play)

Communication range depends on device performance, up to approx. 30 m line-of-sight

Logging module mode (Real-time measurement):

Can be used as LR8410 logging module

Records and displays data in real time

Controls up to 7 units

Communication distance: 30 m

Number of channels: 2 ch (common GND)

Measurement items: AC load current, DC load current, AC leak current (using current sensor)

Effective value calculation: Software calculates true RMS value

Measurement range:

500.0 mA to 2000 A AC

10.00 A to 2000 A DC

Intermittent current or intermittent leak current cannot be measured

Measurement accuracy: ±0.5% rdg. ±5 dgt. (DC, AC 50/60 Hz)

Add sensor accuracy when a current sensor is used

Display items: Measurement value, date, time, number of recorded data, maximum, minimum, average

Functions: Alarm, Scaling, Recording hold, Erroneous operation prevention, Comment recording, Power saving, Authentication, Free run

Recording:

Capacity: 500,000 data items per channel

Mode: Instantaneous, Average, Maximum

Interval: 0.5–30 sec, 1–60 min (14 selections)

Power source:

AC Adapter Z2003 (100–240 V AC, 50/60 Hz)

AA alkaline batteries (LR6) ×2

External DC power 5–13.5 V (USB bus power supported with conversion cable)

Continuous operating time (23°C):

3 months (1-min interval, Bluetooth OFF)

10 days (1-sec interval, Bluetooth ON)

5 days (0.5-sec interval, real-time measurement with LR8410)

Dimensions and mass: 85 × 75 × 38 mm, 130 g (excluding batteries)

Included accessories:

CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Radio-wave Caution Sheet ×1, AA alkaline batteries (LR6) ×2
