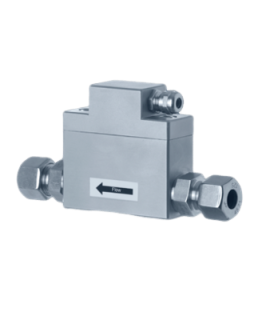

Hoentzsch TA Di 熱流量センサー (Order code: TA Di 8GE60m/s/140/p16 ZG4b, 8mm, 60m/s)

Sensor type / design: Thermal flow sensor TA Di designed as measuring tube

Dimension:

measuring tube inside diameter Ø Di [mm]: 8.0

installation length L [mm]: 80 mm + SRV

installation height h [mm]: 65

Measuring gases: air, clean gases, gas mixtures with constant ratio of mixture

Materials in contact with the medium: stainless steel 1.4571, 1.4305, 1.4404, glass, epoxy resin, silicone (silicone-free on request), FKM

Measuring ranges air/nitrogen:

basic types / measuring range: 60 m/s

in m³/h: 0.04 ... 11

in kg/h: 0.05 ... 13

in l/min: 0.6 ... 181

in m/s: 0.2 ... 60

1 m³/h equates to [m/s]: 5.53

Permissible temperature:

medium: -10 ... +140 °C

ambient: -25 ... +140 °C

Pressure resistance: max. 16 bar / 1.6 MPa above atmospheric greater than 16 bar / 1.6 MPa on request

For more details, see datasheet.
