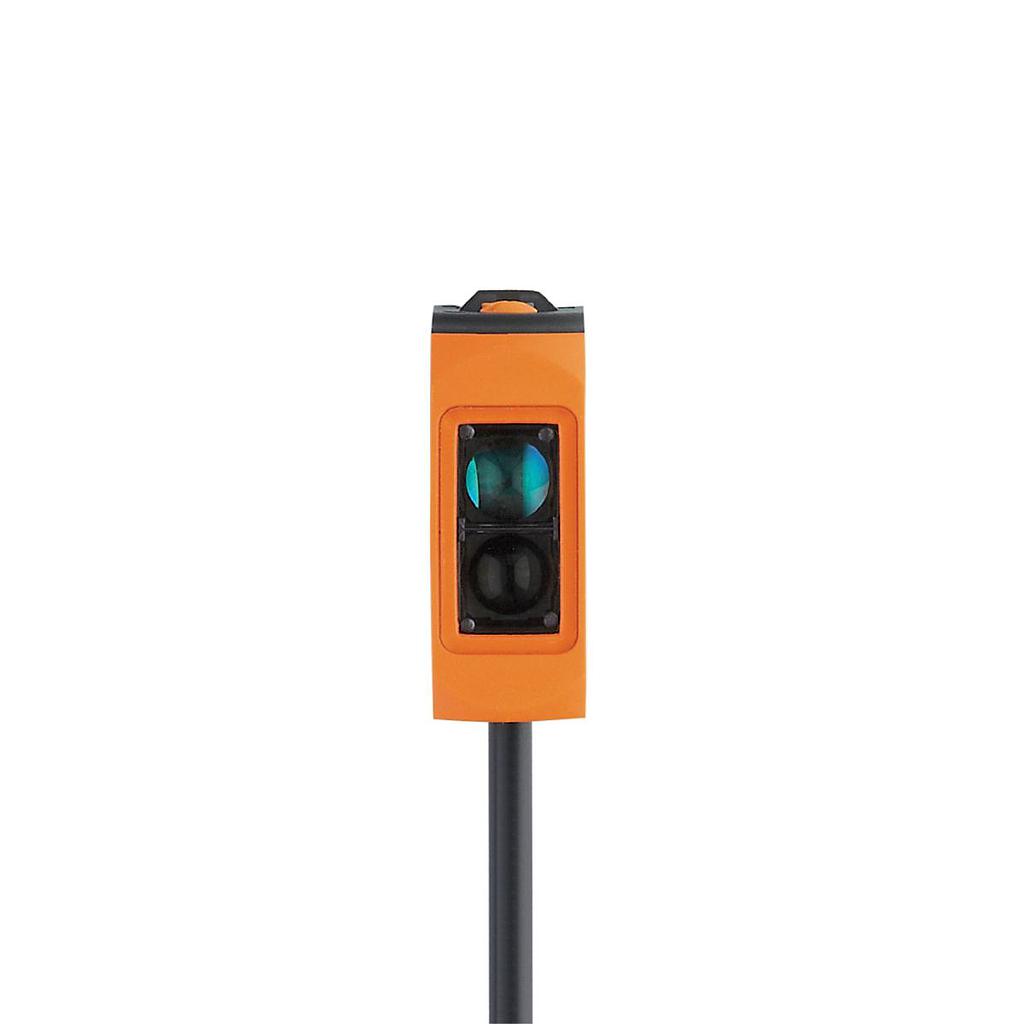

IFM Electronic O6H204 Diffuse Reflection Sensor With Background Suppression (2~200mm; 633nm)

Type of light: Red light

Housing: Rectangular

Special feature: Background suppression

Function principle: Diffuse reflection sensor

Rated insulation voltage [V]: 10...30 DC

Current consumption [mA]: 22

Protection class: III

Reverse polarity protection: Yes

Wavelength [nm]: 633

Electrical design: NPN

Output function: Light/dark mode (selectable)

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 100

Switching frequency DC [Hz]: 1000

Short-circuit protection: Yes

Type of short-circuit protection: Pulse

Detection range [mm]: 2...200; (white paper 200 x 200 mm)

Range on white object (reflectance 90%) [mm]: 2...200

Range on gray object (reflectance 18%) [mm]: 4...200

Range on black object (reflectance 6%) [mm]: 8...200

Adjustable range: Yes

Max. light spot diameter [mm]: 8

Light spot size reference: at maximum range

Background suppression available: Yes

Ambient temperature [°C]: -25...60

Degree of protection: IP65; IP67

EMC: EN 60947-5-2

MTTF [years]: 683

UL approval: UL approval No. E008

Weight [g]: 60.15

Dimensions [mm]: 35.4 x 13 x 21

Thread design: M18 x 1

Material: Housing: ABS; PPSU; Sealing: EPDM

Lens material: PMMA

Lens alignment: Side lens

Tightening torque [Nm]: 0.5

Switching status display: 1 x LED, yellow

Operation display: 1 x LED, green

Note: Operating voltage “supply type 2” according to cULus

Connection: Cable: 2 m, PUR; 3 x 0.25 mm²
