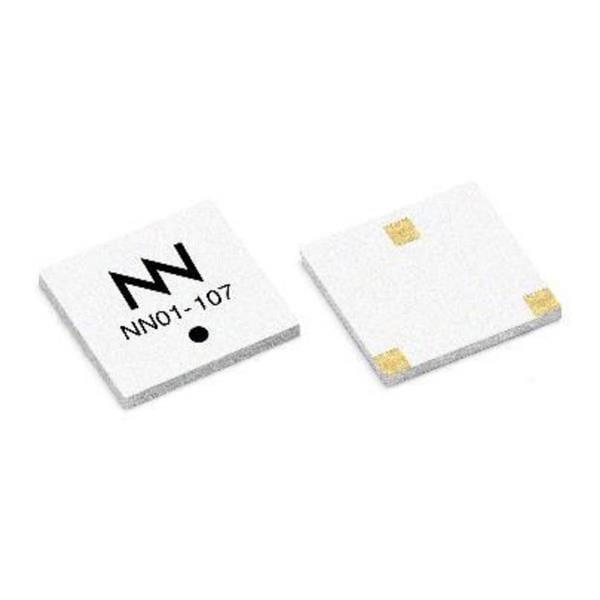

Ignion NN01-107 パッシブアンテナ Media+TM UWB 設計支援については http://ignion.io/fast-track-project/ をご参照ください

Gain: 3.5 dBi

VSWR: 2:1

Style: Rectangular

Width: 10 mm

Height: 0.8 mm

Length: 10 mm

Impedance: 50 Ohms

Application: W-USB, Digital Cameras, Video Recorders, PC Peripherals, Beamers, PDAs, Mobile Phones, Wireless Compact Flash/Secure Digital Cars, Consumer Eletronic Devices

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 4.05 GHz

Mechanical Style: Chip

Maximum Frequency: 5 GHz

Minimum Frequency: 3.1 GHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
