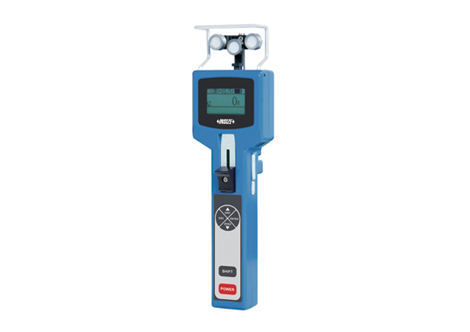

INSIZE ISF-DT2000 Wire tensiometers (20~2000cN)

Accuracy class: ±2%FS

Range of test force: 20~2000cN

Test force resolution: 1cN

Width of measuring: 116mm

Factory calibrated wire diameter: Ø0.4mm

Range of diameter: 0.3~0.7mm

Compensation for diameter: Yes

Frequency of display updates: 2 times/sec

Maximum line speed: 2000 m/min

Power supply: built-in rechargeable battery

Environmental requirements: temp: 10~45°C, humidity: 90% RH

Standard Deliery:

Main unit: 1pc

■ Suitable for testing the tension of stranding machines, winding machines, wire cutting machines, carbon fibre winding equipment, fibre optic winding equipment, fibre optic cable production equipment, glass fibre winding equipment, steel cord production equipment, steel wire rope production equipment and so on.

■ Automatic zeroing, manual zeroing also possible

■ Memory function for recording the current real-time value (up to 10 data), for recording phase data (max., min., average).

■ 10 calibration channels, 6 groups of calibration points to choose from

■ Fine-tunable compensation, compensation value range ±10%FS, 1% for one component

■ Six units g, cN, N, Ib, daN, kg are automatically converted.

■ 3 min no operation auto shutdown
