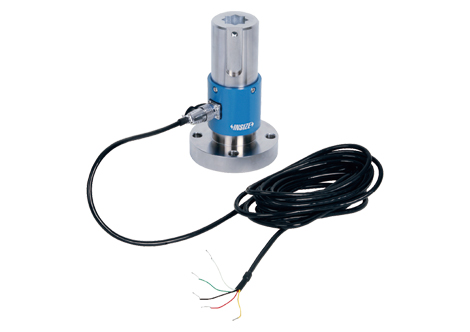

INSIZE IST-NJ2000 Static torque sensors (2000 N.m; D = 150mm)

Standard Delivery:

Torque sensor (with connecting cable): 1pc

Specification

Maximum range A: 2000N.m

A (mm): 125

B (mm): 75

C (mm): 105

W (mm: 83

D (mm): 150

E (mm): 20

F (mm): 65

K (mm): 60

L (mm): 30

N (mm): 20

S (mm): 25.5

P (mm): 67.5

M (mm): 8xØ12

G (mm): 60

H (mm): 6

Output sensitivity: 1.0~2.0mV/V

Zero output: ±1%F.S.

Linearity: ±0.1%F.S.

Hysteresis: ±0.5%F.S.

Repeatability: ±0.3%F.S.

Creep (30 minutes): ±0.1%F.S.

Temperature sensitivity drift: ±0.1%F.S./10°C

Zero temperature drift: ±0.1%F.S./10°C

Response frequency: 10kHz

Material: Alloy steel /Stainless steel

Electrical impedance: 350±5/700±50

Insulation impedance: ≥5000MΩ/100VDC

Operating voltage: 5~15V

Working temperature: -20~80°C

Safety overload: 120%

Extreme overload: 150%

Cable specification: Ø5mm×3m

Extreme cable pulling force: 10kg

■ Wide range of applications: for testing electric, pneumatic and manual torque screwdrivers and torque wrenches and other torque tools and torque monitoring

■ Clockwise and counter-clockwise operation

■ High overall accuracy, good long-term stability
