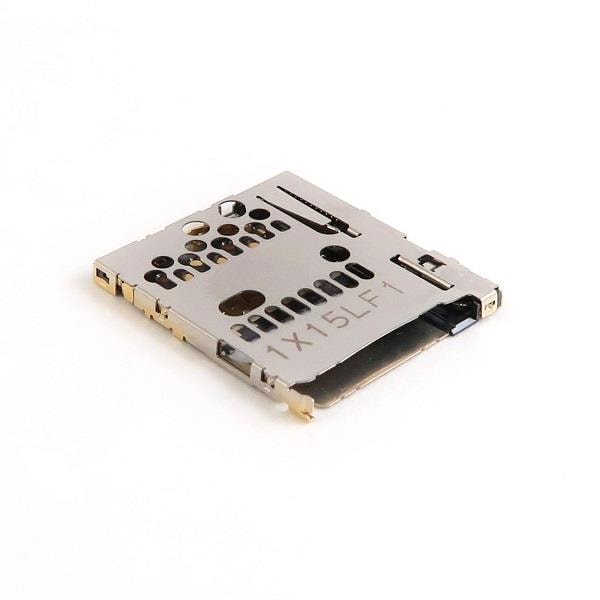

JAE Electronics ST11S008V4HR2000 カードコネクタ microSD プッシュプッシュ 高保持ロック

Height: 1.25 mm

Length: 20.4 mm

Card Type: microSD

Unit Weight: 793 mg

Current Rating: 500 mA

Mounting Style: PCB Mount

Number of Rows: 1 Row

Voltage Rating: 10 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Synthetic Resin

Termination Style: SMD/SMT

Number of Contacts: 8 Contact

Insulation Resistance: 1 GOhms

Insertion - Extraction Style: Push-Push

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
