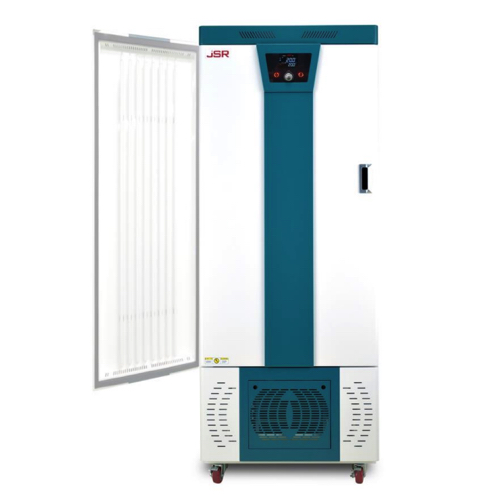

JSR JSBI-150CPL Tabletop Refrigerated Incubator, Programmable (150 L; 1 kW; +0 °C ~ +70 °C)

Dimension Data

Chamber Volume: 150 Liters

Inner Dims. (W x D x H mm): 500 x 500 x 600 mm

Outer Dims. (W x D x H mm): 680 x 825 x 1370 mm

Inner Glass Door (W x H mm): 561 x 677 mm

No. of Shelf Positions: 20 ea

No. of Shelves Included: 2 ea

Performance Data

Heating System: Forced Air Convection

Cooling System: Hermetically Sealed Air Cooled Compressor

Temp. Range: +0 °C ~ +70 °C

Accuracy: ±0.2 °C at +20.0 °C

Uniformity: ±0.5 °C at +20.0 °C

Lamp Type, Length: LED, 300 mm

Lamp Configuration: 11 Watt x 5 ea

Controller

Processor: Digital Microprocessor PID Temperature Controller

Display: Back Light Graphic LCD Display

Panel: UV Coated Polycarbonate Solid Touch Panel

Button: Capacitive Touch LED Lighting Touch Button

Interface: Push and Rotary Encoder Type Jog Dial

Control Logic: 3 Zone PID Control

Calibration:

1 Point Temperature OFFSET

3 Point Temperature Calibration

Resolution: 0.1 °C

Programming: 10 Step Temperature Program, 1 ~ 999 or Unlimited Times Repeat

Light ON/OFF Program: ON/OFF Control on Each Program Step for Day-Night Simulation

Auto-Stop Timer: 1 min. ~ 99 hr 59 min.

Auto-Start Timer: 1 min. ~ 99 hr 59 min.

Sensor: CLASS A PT-100 Ω Sensor

Power Restoration: Power and Timer Restoration Function in Case of Power Outage

PC Communication Interface: RS-232C PC Communication Interface [Option]

Safety Data

Safety Device:

Sensor Short or Disconnection Audio Visual Alarm

Controller Cut-Off Heater, Compressor and Audio Visual Alarm in Case of:

HI-ALARM: +5 °C Above Set Temp.

LO-ALARM: -5 °C Below Set Temp.

Independent Analog Thermostat Cut-Off Heater Above Set Temperature

Door Open Audio Visual Alarm

Electrical Data

Rated Voltage: 220 ±10% VAC

Power Frequency: 50 / 60 Hz

Heater Output: 1 kW

Nominal Power: 1.7 kW 7.7 amp

Phase: 1 Phase

Plug Configuration: CEE 7/7 Schuko or BS 1363

Usable Condition

Temp. & Humidity: 5 °C ~ 40 °C, < 80% RH
