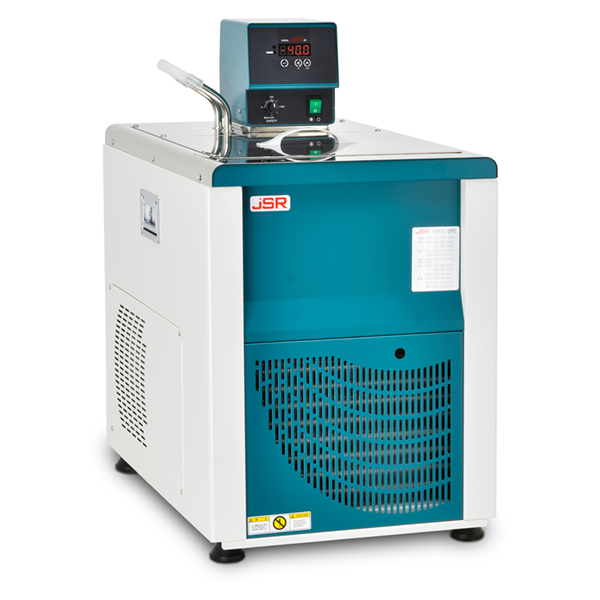

JSR JSRC-22CL Refrigerated Circulation Baths (20 L; 1.2 kW)

Bath Capacity: 20 Liters

Inner Dims. (W x D x H): 300 x 330 x 200 mm

Usable Dims. (W x D x H): 300 x 150 x 200 mm

Outer Dims. (W x D x H): 430 x 480 x 780 mm

Temp. Range: -40℃ ~ +120℃

Accuracy: ±0.1℃ at -10℃

Uniformity: ±0.3℃ at -10℃

Heating: Stainless Steel 304 Immersion Heater

Cooling: CFC Free Air Cooled Compressor

Circulation Pump:

Flow Rate: 10 Liter/min

Pressure: 0.5 bar

Control: Microprocessor PID Control with Auto START / STOP Timer

Sensor: Class A PT-100 Ω Sensor

Safety:

Over-Temperature Cut-Off

Over Current Cut-Off

Low Water Level Cut-Off

Material:

Body: Epoxy Powder Coated Steel

Bath: Seamless Stainless Steel 304

Pump: Stainless Steel 304

Electrical Requirement: 220 ±10% VAC, 50/60 Hz, 1-Phase

Heater Capacity: 1.2 kW

Power Rating: 8.9 amps
