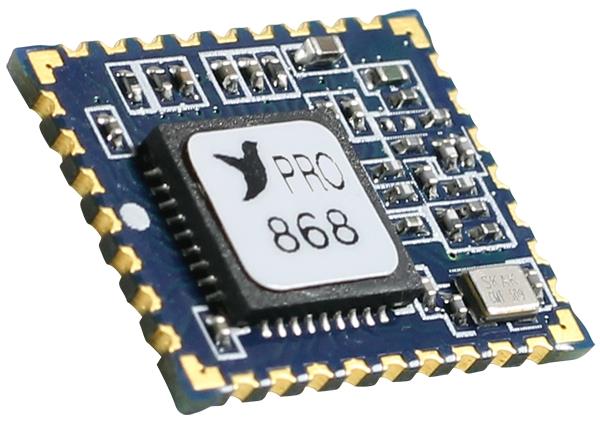

Linx Technologies - TE Connectivity HUM-868-PRO RFトランシーバー HumPRO 868MHZ トランシーバーモジュール

Frequency: 863 MHz to 870 MHz

Dimensions: 11.43 mm x 14 mm x 1.78 mm

Unit Weight: 18.257 g

Output Power: 9.5 dBm

Interface Type: UART

Description/Function: RF transceiver module

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2 V

Operating Supply Voltage: 2 V to 3.6 V

Supply Current Receiving: 23.5 mA

Supply Current Transmitting: 40.5 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
