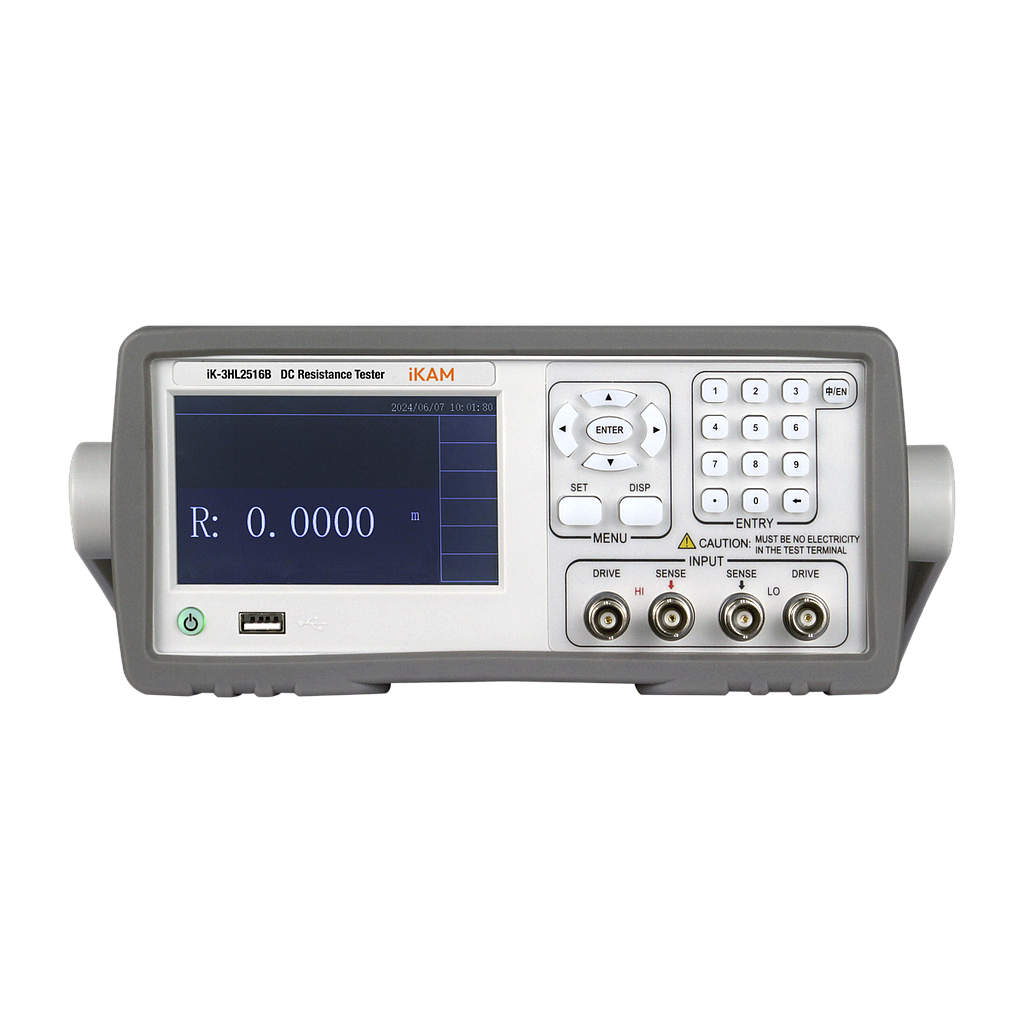

iKAM iK-3HL2516B DC low resistance Tester (1μΩ~20kΩ)

Display: 4.3-inch high-definition LCD touch screen

Reading digits: 4 and a half positions

Measurement range: 1μΩ~20kΩ

Resistance range: 20mΩ / 200mΩ / 20Ω / 200Ω / 2kΩ / 20kΩ

Basic measurement accuracy: 0.05% (refer to the user manual for detailed information)

Resistance measurement time: fast: 20ms, slow: 40ms

Temperature measurement time: 100 ± 10ms

Test end configuration: four terminals

Low voltage measurement: open circuit voltage ≤ 40mV, effective range: 2Ω, 20Ω, 200Ω, 2kΩ

Statistical functions: Qualified and unqualified

Save measurement settings parameters: 10 sets

Temperature measurement: not available

Other functions: not available (no temperature compensation and conversion)

Comparator – Signal output: HI/IN/LO

Comparator – Sound: Call mode: OFF, IN, HI/LO

Comparator – Limit setting mode: 3, absolute value upper/lower limit

Interface configuration: standard: RS232, Handler (RS485 optional)

Standard accessory: power cord, four terminal low resistance test line
