Metrel MI 3136 Standard set Multifunctional Electrical Installation Tester (50 V ~ 1000 V)

Continuity

Test Current 8.5 mA 2-wire:

0.0 Ω ... 19.99 Ω / 0.1 Ω / ±(5 % of reading + 3 digits)

20 Ω ... 1999 Ω / 1 Ω / ±(5 % of reading + 3 digits)

Test Current 200 mA 2-wire:

0.00 Ω ... 19.99 Ω / 0.01 Ω / ±(3 % of reading + 3 digits)

20.0 Ω ... 199.9 Ω / 0.1 Ω / ±(5 % of reading)

200.0 Ω ... 1999 Ω / 1 Ω / ±(5 % of reading)

Rpe (RCD: No):

0.00 Ω ... 19.99 Ω / 0.01 Ω / ±(5 % of reading + 5 digits)

20.0 Ω ... 199.9 Ω / 0.1 Ω / ±(5 % of reading + 5 digits)

200 Ω ... 1999 Ω / 1 Ω / ±(5 % of reading + 5 digits)

Insulation Resistance

Test Voltage 50/100/250 V:

0.00 MΩ ... 19.99 MΩ / 0.01 MΩ / ±(5 % of reading + 3 digits)

20.0 MΩ ... 99.9 MΩ / 0.1 MΩ / ±(10 % of reading)

100.0 MΩ ... 199.9 MΩ / 0.1 MΩ / ±(20 % of reading)

Test Voltage 500 V:

0.00 MΩ ... 19.99 MΩ / 0.01 MΩ / ±(5 % of reading + 3 digits)

20.0 MΩ ... 199.9 MΩ / 0.1 MΩ / ±(5 % of reading)

200 MΩ ... 999 MΩ / 1 MΩ / ±(10 % of reading)

Test Voltage 1000 V:

0.00 MΩ ... 19.99 MΩ / 0.01 MΩ / ±(5 % of reading + 3 digits)

20.0 MΩ ... 199.9 MΩ / 0.1 MΩ / ±(5 % of reading)

Voltage (Um): 0 V ... 1200 V / 1 V / ±(3 % of reading + 3 digits)

RCD Test

RCD Uc (Contact Voltage):

0.0 V ... 19.9 V / 0.1 V / (-0 %/+15 %) of reading ± 10 digits

20.0 V ... 99.9 V / 0.1 V / (-0 %/+15 %) of reading

RCD (t) (Trip Time):

0.0 ms ... 40.0 ms / 0.1 ms / ±1 ms

40.1 ms ... 999.9 ms / 0.1 ms / ±3 ms

1000 ms ... 1999 ms / 1 ms / ±3 ms

2.00 s ... 10.00 s / 10 ms / ±10 ms

RCD I Ramp (Trip Current):

0.1 mA ... 1.10 A / (Range dependent) / ±10 %

Impedance

Zline (L-L, L-N) & Zloop (L-PE):

0.00 Ω ... 9.99 Ω / 0.01 Ω / ±(3 % of reading + 3 digits)

10.0 Ω ... 99.9 Ω / 0.1 Ω / ±(3 % of reading + 3 digits)

100 Ω ... 999 Ω / 1 Ω / ±(10 % of reading)

1.00 kΩ ... 9.99 kΩ / 10 Ω / ±(10 % of reading)

Zs RCD:

0.00 Ω ... 9.99 Ω / 0.01 Ω / ±(5 % of reading + 10 digits)

10.0 Ω ... 99.9 Ω / 0.1 Ω / ±(5 % of reading + 10 digits)

100 Ω ... 9.99 kΩ / 1 Ω ... 10 Ω / ±(10 % of reading)

Voltage & Frequency

Voltage: 0 V … 550 V / 1 V / ±(2 % of reading + 2 digits)

Frequency: 14.0 Hz ... 499.9 Hz / 0.1 Hz / ±(0.2 % of reading + 1 digit)

EARTH RESISTANCE

3-wire Method:

0.00 Ω ... 19.99 Ω / 0.01 Ω / ±(5 % of reading + 5 digits)

20.0 Ω ... 199.9 Ω / 0.1 Ω / ±(5 % of reading + 5 digits)

200.0 Ω ... 9999 Ω / 1 Ω / ±(5 % of reading + 5 digits)

General Data

Power Supply: 7.2 V (5200 mAh) Li-ion battery pack

Overvoltage Category: 600 V CAT III; 300 V CAT IV

Protection Class: Double insulation

COM Port: Bluetooth, USB Type-C

Display: 4.3 inch Colour TFT touch screen (480 x 272 pixels)

Weight: 1.35 kg

Dimensions (L x H x W): 272 x 152 x 70 mm

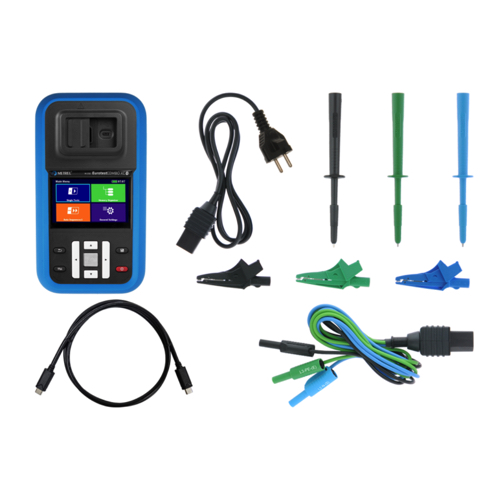

Standard set (ST)

• Instrument MI 3136 EurotestCOMBO XC

• 1x A 1014 Test probe, Black

• 1x A 1015 Test probe, Blue

• 1x A 1062 Test probe, Green

• 1x A 1013 Crocodile clip, Black

• 1x A 1310 Crocodile clip, Blue

• 1x A 1309 Crocodile clip, Green

• 1x A 1193 Test cable, BLK/GRN/BLU, 1.5m,

0.75mm2

• 1x A 1053 Test cable, 1.5m, 0.75mm2

• 1x A 1857 USB cable, Type C

• Calibration certificate

• Short instruction manual

• Instruction manual

• Metrel ES Manager BASIC Licence

• SW 1201 Metrel ES Manager (program installation)
