Metrel MI 3394 Lab set Machine And Switchboard Testers (100 V – 5100 V; 500 V – 6000 V)

HVAC, Programmable HV AC, Output voltage 100 V – 5100 V, 10 V steps

Test voltage (AC):

0 ... 1999 V / 1 V / ±(3 % of reading)

2.00 ... 5.99 kV / 10 V / ±(3 % of reading)

Test current apparent: 0.0 ... 99.9 mA / 0.1 mA / ±(3 % of reading + 3 digits)

Capacitive current: 0.0 mA ... 99.9 mA / 0.1 mA / Indicative

Resistive current: -99.9 mA ... 99.9 mA / 0.1 mA / Indicative

Short circuit current: > 200 mA

Output power: 500 VA max

HVDC, Programmable HV DC, Output voltage 500 V – 6000 V, 50 V steps

Test voltage (DC):

0 ... 1999 V / 1 V / ±(3 % of reading)

2.00 ... 6.99 kV / 10 V / ±(3 % of reading)

Test current: 0.01 ... 9.99 mA / 0.01 mA / ±(5 % of reading + 3 digits)

Discharging time

t: 0.0 ... 9.9 s / 0.1 s / ±(5 % of reading + 3 digits)

Up: 0 ... 550 V / 1 V / ±(5 % of reading + 3 digits)

Continuity (0.2A, 4A, 10A, 25A)

Resistance (R):

0.00 Ω ... 19.99 Ω / 0.01 Ω / ±(2 % of reading + 2 digits)

20.0 Ω ... 99.9 Ω / 0.1 Ω / ±(3 % of reading)

100.0 Ω ... 199.9 Ω / 0.1 Ω / ±(5 % of reading)

200 Ω ... 999 Ω / 1 Ω / Indicative

Insulation resistance (250 V, 500 V, 1000 V)

Riso / Riso-s:

0.00 MΩ ... 19.99 MΩ / 0.01 MΩ / ±(3 % of reading + 2 digits)

20.0 MΩ ... 199.9 MΩ / 0.1 MΩ / ±(10 % of reading)

Output voltage: 0 V ... 1200 V / 1 V / ±(3 % of reading + 2 digits)

Leakage Current Measurements

Substitute leakage (Isub / Isub s): 0.00 mA ... 19.99 mA / 10 µA / ±(5 % of reading + 3 digits)

Differential leakage (Idiff): 0.00 mA ... 19.99 mA / 0.01 mA / ±(3 % of reading + 5 digits)

PE leakage current (Ipe): 0.00 mA ... 19.99 mA / 0.01 mA / ±(3 % of reading + 3 digits)

Touch leakage current (Itou): 0.00 mA ... 19.99 mA / 0.01 mA / ±(3 % of reading + 3 digits)

Power and TRMS Measurements

Active Power (P): 0.00 W … 3.70 kVA / 0.01 VA to 10 VA / ±(5 % of reading + 5 D)

Apparent Power (S): 0.00 VA … 3.70 kVA / 0.01 VA to 10 VA / ±(5 % of reading + 10 D)

Reactive Power (Q): 0.00 var … 3.70 kvar / 0.01 var to 10 var / ±(5 % of reading + 10 D)

Power Factor (PF): 0.00i ... 1.00c / 0.01 / ±(5 % of reading + 5 digits)

Voltage (U): 0.1 V ... 264 V / 0.1 V to 1 V / ±(3 % of reading + 10 digits)

Current (I): 0 mA ... 16.00 A / 1 mA to 10 mA / ±(3 % of reading + 5 D)

Power supply: 110 V / 230 V AC, 50 Hz / 60 Hz

Overvoltage category: CAT II / 300 V; CAT II / 600 V

HV output: 5 kV a.c. / 6 kV d.c. (Double Insulation)

Communication: 4 x RS232, 1 x USB, 1 x Bluetooth

Dimensions (w x h x d): 43.5 cm x 29.2 cm x 15.5 cm

Weight: 17 kg

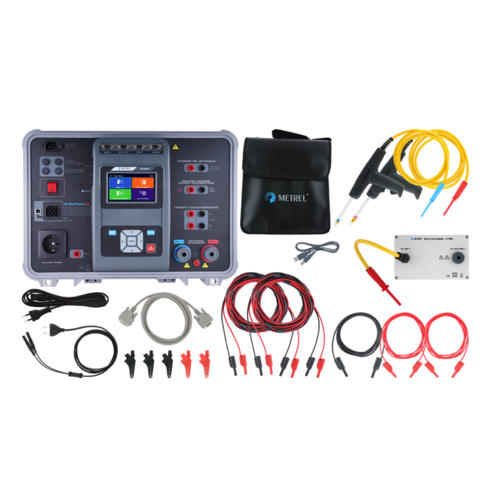

MI 3394 Instrument CE MultiTesterXA

A 1560 Burn Link adapter

HV test pistol with 2 m cable, 2 pcs

Continuity test lead, 2.5 m, 2 pcs

Continuity test lead, red, 1.5 m, 1pcs

Insulation test lead, red, 2.5 m

Insulation test lead, black, 2.5 m

Crocodile clip, black, 3 pcs

Crocodile clip, red, 2 pcs

Discharge time cable

Mains cable

Bag for accessories

RS232 cable

USB cable

Calibration certificate

Short instruction manual

Instruction manual

Metrel ES Manager BASIC Licence

SW 1201 Metrel ES Manager (program installation)

Datasheet
